| Display: | Touch Screen Display | Fuselage: | High-quality Cast Iron In One Casting |
|---|---|---|---|
| Loading: | Closed-loop Electric Sensor | Conversion: | Automatically Convert The Unit Of The Full Hardness Scale |
| Data Process: | Bluetooth Mini Printer, And Can Output Data Through The RS232 Port | Height: | Max 330mm For Specimen |
| Highlight: | Touch Screen Brinell Hardness Tester,Bluetooth Mini Printer Brinell Hardness Tester,330mm Brinell Hardness Testing Machine |
||

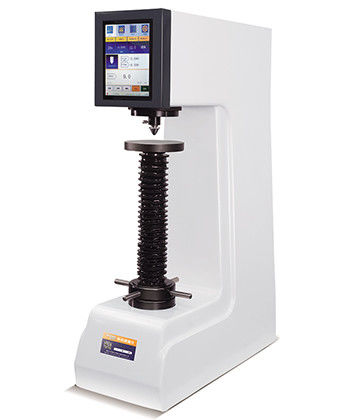

Touch screen electronic Brinell hardness tester with bluetooth mini printer
Model: HB-3000ET
product description:
●iqualitrol HB-3000ET touch screen electronic Brinell hardness tester can display the hardness value on the LCD display screen, and can display and set the test scale, test force, indenter type, dwell time, conversion unit, etc.;
●The fuselage is made of high-quality cast iron in one casting, with the car paint treatment process, the shape is round and beautiful;
● HB-3000ET adopts closed-loop electric sensor, with overload and over-position automatic protection functions; the test process is automated, and there is no human error;
● Adopt electric loading and unloading test force, closed-loop feedback by pressure sensor with 5‰ precision, high-speed ARM processor control and automatic correction of test force;
● It can automatically convert the unit of the full hardness scale;
● Equipped with a bluetooth mini printer, and can output data through the RS232 port;
● Accuracy complies with GB/T231.2-2018, ISO6506-2 and American ASTM E10 standards.
Main Parameters:
| Model | HB-3000ET |
| Range of Measurement | 5-650HBW |
| Test Force |
612.9, 980.7, 1225.9, 1838.8, 2451.8, 4903.5, (62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf) |
| Available Maximum Height of Specimen | 330mm |
| Distance between Indenter Center and Wall | 150mm |
| Hardness Resolution | 0.1HBW |
| Power Supply | AC 220V,50Hz |
| Outline Dimension | 700*268*980mm |
| Weight | 160kg |
