Product Details:
Payment & Shipping Terms:
|
| Model: | HBS-3000T | Loading: | Apply Weights |
|---|---|---|---|
| Display: | Touch Screen Display | Magnification: | 20X |
| Throat: | Horizontal Space 165mm | Height: | Max Height Of Specimen 280mm |
| Visual Measure: | CCD Image Processing System Or Video Measuring Device | Name: | Weights Loading Touch Screen Brinell Hardness Tester |

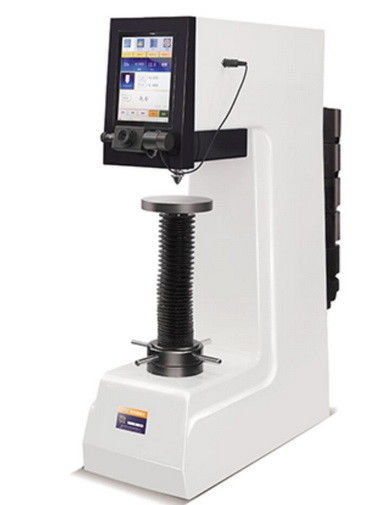

Weights Loading Touch Screen Brinell Hardness Tester
with Digital Eyepiece 20X
Technical Data Download: iqualitrol Brinell Hardness Tester HBS-3000T
Brief Introduction:
iqualitrol HBS-3000T touch screen digital display Brinell hardness tester, using 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed;
The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
Convenient control system, which can automatically convert the unit of the full hardness scale;
Configure the printer, and output data through RS232 and USB interfaces;
Optional CCD image processing system or video measuring device;
The precision complies with GB/T231.2-2018, ISO6506-2 and American ASTM E10 standards.
Technical Specifications:
| Model | HBS-3000T |
|
Range of Measurement |
5-650HBW |
| Test Force |
1838.8, 2415.8, 4903.5, 7355.3, 9807, 14710.5, 29421N (187.5, 250, 500, 750, 1000, 1500, 3000kgf) |
| Maximum Height of Specimen | 280mm |
| Distance between Indenter Center and Wall | 165mm |
| Magnification | 20X |
| Hardness Resolution | 0.1HBW |
| Power Supply | AC 220V,50Hz |
| Dimension | 700*268*980mm |
| Weight | 210kg |
