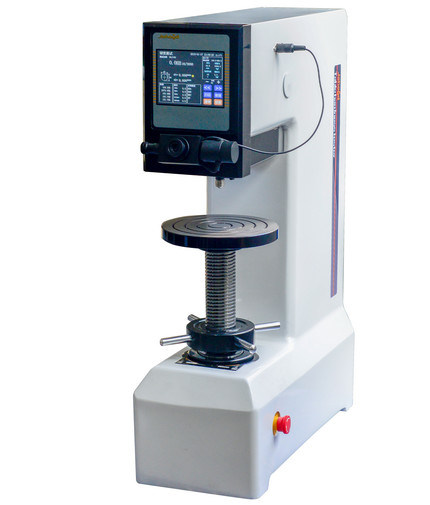

Touch Screen Digital Brinell Hardness Testing Machine Auto Turret with 10 test forces

Touch Screen Digital Brinell Hardness Testing Machine Auto Turret with 10 test forces
Touch Screen Digital Brinell Hardness Testing Machine Auto Turret with 10 test forces

Large Image :  Touch Screen Digital Brinell Hardness Testing Machine Auto Turret with 10 test forces

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HBST-3000Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Display: Touch Screen Display Turret: Automatic Turret, Indenter And Objective
Eyepiece: Digital Display Micrometer Eyepiece And Precise Data Calculation System Test Force: From 62.5kgf - 3000kgf With 10-level Test Force
Test Space: Vertical 220mm * Throat 135mm Printer: Built-in Printer To Output Measurement Data
High Light:

62.5kgf Brinell Hardness Testing Machine


3000kgf Brinell Hardness Testing Machine


Auto Turret Digital Brinell Hardness Tester


Touch Screen Auto Turret Digital Brinell hardness Testing Machine


Model: HBST-3000Z


Technical Data Download: iqualitrol Automatic Brinell Hardness Tester HBST-3000Z


Main functions and features:

1. iqualitrol HBST-3000Z has the characteristics of high precision, high repeatability and stability, easy operation, convenient and practical, and high cost performance;


2. With 10-level test force, the test range is wider;

3. Equipped with digital display micrometer eyepiece and precise data calculation system, the hardness value can be displayed directly with one click;


4. The system has its own calibration function, which can be manually adjusted to input the calibration instrument, and can also calibrate the eyepiece magnification.

5. Optical system brightness adjustable range: 0-100;


6. Can store up to 100 sets of test data;

7. The operating system can be converted between Chinese and English;


8. The main interface can display 5 conversion scales at the same time;

9. Equipped with a built-in printer to output measurement data or connected to a computer, the measurement data of the host can be transferred to the computer for editing and saving;


10. Equipped with a high-performance stepping motor to automatically load and unload the test force, the noise generated during the test is smaller

11. Using photoelectric sensing technology and microcomputer control system, it can automatically compensate, and the test results are accurate and stable;


12. Automatic input of indentation diameter, direct display of hardness value, dual display of any hardness unit, avoiding the tedious look-up table;

13. high-magnification LED optical measurement, high image definition, adjustable brightness, and long-term operation should not be fatigued;


14. The shell is cast at one time, the structure is stable and does not deform, and it can work in a relatively harsh environment;

15. The surface is treated with car paint process, which has strong scratch ability and is still as bright as new after many years of use;



Technical Specifications:

Model HBST-3000Z, Touch Screen
Brinell Scales HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100, HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Test force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Loading control Automatic (loading/dwell/unloading)
Turret Automatic turret among indenter and objective
Specimen height 220mm
Throat depth 135mm
Distance between indenter and upper wall 55mm(support customized)
Length resolution 0.125um
Dwell time 0~60s
Hardness range 3.18~653HBW
Magnification 20X
Test standards EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150 -2005
Hardness reading Automatic calculate
Data output Built-in Printer, Hyper terminal
Power supply AC220+5%, 50~60Hz
Dimension 520*210*745mm
Weight 125kg
