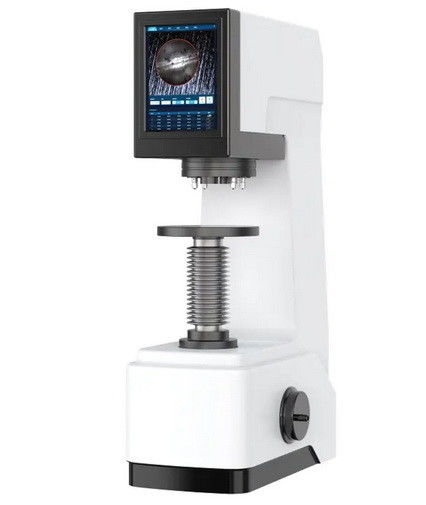

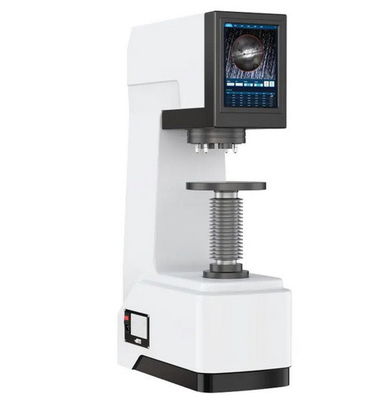

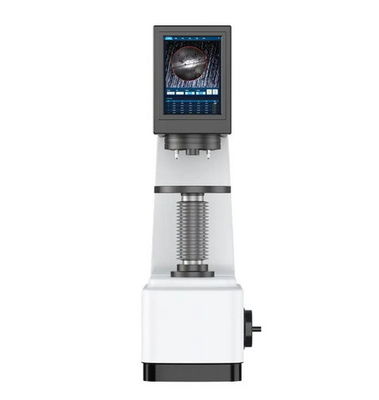

Motorized Lifting System Automatic Brinell Hardness Tester With 4 Indenters 2 Objectives

Motorized Lifting System Automatic Brinell Hardness Tester With 4 Indenters 2 Objectives
Motorized Lifting System Automatic Brinell Hardness Tester With 4 Indenters 2 Objectives Motorized Lifting System Automatic Brinell Hardness Tester With 4 Indenters 2 Objectives Motorized Lifting System Automatic Brinell Hardness Tester With 4 Indenters 2 Objectives

Large Image :  Motorized Lifting System Automatic Brinell Hardness Tester With 4 Indenters 2 Objectives

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: MHBS-3000ZD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Display: Industrial Touch Screen Controller Brinell Reading: Automatic Measurement
Operation Mode: One-button Operation, Motorized Lifting System Turret: Automatic Turret, 4 Indenters And 2 Objectives
Test Space: Vertical 280mm * Throat 200mm Accuracy: Repeatability Up To ±0.8%
High Light:

Motorized Lifting Brinell Hardness Tester

,

4 Indenters Brinell Hardness Tester

,

2 Objectives Brinell Hardness Testing Machine



Motorized Lifting Structure Intelligent Automatic Brinell Hardness Tester Equips 4 Indenters 2 Objectives



Model: MHBS-3000ZD



Technical Data Download: iqualitrol Brinell Hardness Tester MHBS-3000ZD



Product Description:

Brinell hardness test is mainly used for hardness measurement of cast iron, steel, non-ferrous metals and soft alloys, etc. In addition, it can also be used for hardness measurement of some non-metallic materials such as hard plastics and bakelite. Suitable for factories, workshops, laboratories, universities and research institutions.



  • iqualitrol MHBS-3000ZD has 12 levels of test forces and 16 test scales for Brinell hardness, which can be selected arbitrarily;
  • iqualitrol MHBS-3000ZD equips 4pcs of ball indenters, all of them can automatically participate in the test;
  • iqualitrol MHBS-3000ZD equips 2 objective lenses (1x and 2x), and both can participate in the measurement of the indentation diameter;
  • According to the selected scale, the objective lens and the indenter are automatically switched;
  • Preset the test force holding time, adjust the strength of the indentation light source;
  • Real-time display of loading time;
  • Display the measured indentation length, hardness value, measurement times, etc.;
  • Select the conversion value between the hardness scales;
  • Test results can be printed out.



iqualitrol MHBS-3000ZD Automatic Brinell hardness tester, unique automatic turret structure system, user-defined measurement target matching cemented carbide indenter, test force, holding time and then start the test,



after the measurement is completed, no need to move the workpiece, automatic conversion, CMOS directly captures the indentation image, and uses the world's advanced digital imaging technology to automatically find the most suitable pixels for the indentation characteristics on the indentation image, high-speed analysis, and automatic reading.



Automatic measurement of standard block indentation, shadow indentation, background blur indentation, and elliptical indentation.



Main Specifications:

Model MHBS-3000ZD
Test force 29.42N(30kg), 306.45N(31.25kg), 612.9N(62.5kg), 980.7N(100kg), 1226N(125kg),1839N(187.5kg), 2452N(250kg), 4903N(500kg), 7355N(750kg), 9807N(1000kg), 14710N(1500kg), 29420N(3000kg)
Brinell Scales HBW10/3000, HBW10/1500, HBW10/1000, HBW5/750, HBW10/500, HBW10/250, HBW5/250, HBW2.5/187.5, HBW 10/125, HBW5/125, HBW10/100, HBW5/62.5, HBW2.5/62.5, HBW5/31.25 ,HBW2.5/31.25, HBW1/30
Measuring range 8~650HBW
Loading method Automatic lifting, loading, loading, unloading, automatic measurement of the worktable
Max. height of the test piece 280mm
Throat depth 200mm (The distance from the center of the indenter to the inner wall)
Main test force loading time 5~8S
Dwell time 0-99S
Indenter Objective Switch Automatic
Dimensions 230*600*920mm
Weight 130Kg
Objective lens 1X, 2X
Optical path conversion Automatic
Indenter diameter (mm) Φ1, Φ2.5, Φ5, Φ10 mounted on the same turret
Operating mode One-button operation, the table automatically lifts, loads, holds, unloads, and measures CMOS
Indentation image measurement method automatic measurement
Indentation image repeat measurement accuracy Repeatability up to ±0.8%
Data display 12.1 inch industrial grade touch screen
Data output Output report in WORD and EXCEL form, can be printed out; graphics engine shows more functions
Statistics Hardness conversion: According to national standards, Brinell-Rockwell-Vickers-Knoop and other hardness value conversions are automatically performed and displayed in real time.
light source LED
function adjustment Stepless adjustment of the intensity of the light source
Communication Interface USB,RJ45LAN,WLAN,RS232
Dimensions(L×W×H) 1000×595×350mm
Voltage AC 220V/110V±5%,50~60 Hz


Packing List:

Name Specification Unit Quantity Note
Brinell hardness tester   Set 1
Ball indenter φ10, φ5, φ2.5, φ1 Pc 4
Objective lens 1╳,2╳ Pc 2
Accessory box   Pc 1
Reading microscope 20╳ Pc 1
"V" type test bench   Pc 1
Big flat test bench   Pc 1
Small flat test bench   Pc 1
Dust cover   Pc 1
Allen key   Pc 1
Power cable   Pc 1
Fuse 2A Pc 2
Brinell hardness block (150~250)HBW 10/3000 Pc 1
Brinell hardness block (150~250)HBW5/750 Pc 1
Brinell measuring system Integrated in the host Set 1
Product certification   sheet 1
Instruction Manual   Sheet 1
