|Model:||ZXQ-4||Loading:||Hydraulic Loading Control|
|Diameter:||ф22mm, ф30mm, ф45mm (Select One)||Pressure:||0-10MPa|
|Mounting Time:||Around 5min||Cooling:||Water Cooling|
Metallographic Sample Inlay Machine,
Hydraulic Control Sample Inlay Machine,
6 Minutes Metallographic Mounting Press

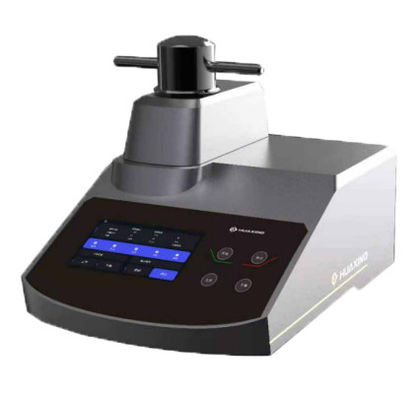

Hydraulic Control Automatic Metallographic Sample Inlay Machine Completed Within 6 Minutes
iqualitrol ZXQ-4 automatic metallographic sample inlay machine is a multi-functional water-cooled inlay machine for inlaying various samples.
iqualitrol ZXQ-4 is used for inlaying small and irregular workpieces that are not easy to hold by hand. After inlaying, it is convenient to grind and polish the workpiece, and it is also beneficial for users to observe the structure of the material more conveniently under the metallographic microscope.
The machine adopts hydraulic control. The biggest feature of the cylinder is the use of a special process design, and the inlay process can be completed within 6 minutes.
Specimen pressing specifications: ф22mm, ф30mm, ф45mm (choose one)
Heater: AC220V, 2600W
Sample preparation pressure: 0-10MPa
Sample preparation time: 5min
Cooling method: water cooling
Net weight: 45KG
