| Model: | XRock-S304 | Loading: | Manual Loading Control |
|---|---|---|---|
| Height: | Max Specimen Height 170mm | Throat: | Max Horizontal Space 135mm |
| Initial Force: | 10Kgf (98N) | Range: | 20-88HRA, 20-100HRB,20-70HRC |
| High Light: | 135mm Rockwell Hardness Testing Machine,10Kgf Rockwell Hardness Tester,Resolution 0.5HR Rockwell Hardness Tester |
||

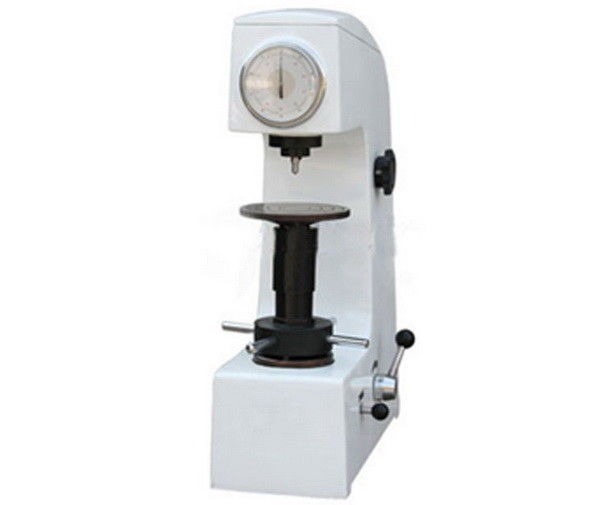

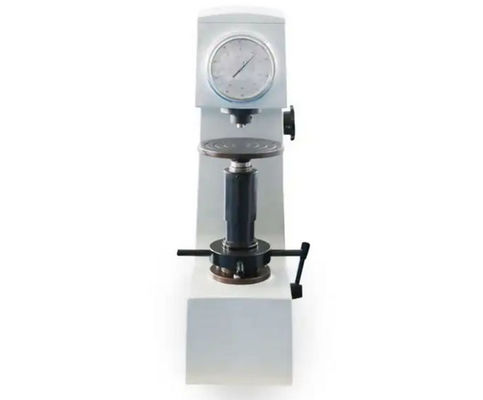

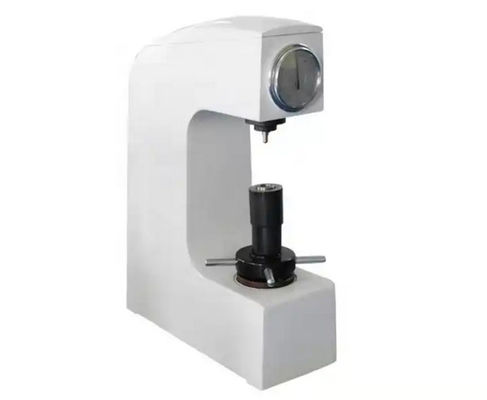

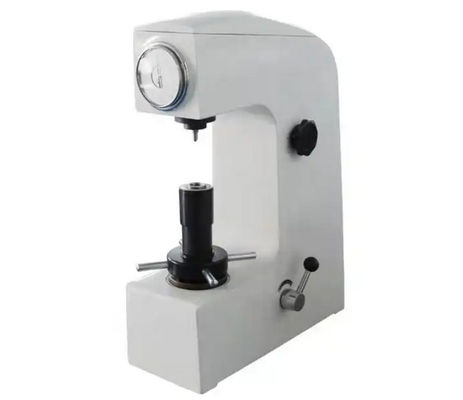

Depth Throat 135mm Basic Manual Rockwell Hardness Testing Machine with Resolution 0.5HR
Model: XRock-S304
Applications:
● HRA is widely used to measure hardness of carbide alloy, quenched hardening steel after carbonized, hardened thin steel strip and plate, etc. For materials HRC > 67, it is more likely to damage the diamond indenter if we use 1471 test force. For those materials, we had better choose HRC hardness scale which has small test force and indentation.
● HRB is suitable to test medium hardness materials such as low and medium carbon steel after annealing treatment, malleable iron, all kinds of brass, bronze, hard aluminum alloy after solution treatment and so on. The applicable scope is 20~100 HRB. when the material hardness is under 20HV, on account of the creep of metal the specimen deformation will last for a long time under the test force. The needle on indicator dial or optical projection scale moves slowly, causing difficulty in measuring precision. While when the material hardness exceeds 100 HV, the shallow indentation depth decreases sensitivity affecting measuring precision.
● HRC is most applicable to testing carbon steel after quenching or low tempering, alloy steel, tool steel, die steel, as well as chilled cast iron, titanium alloy and so on. Generally, we apply HRC scale to test materials HRB>100, and HRB scale to test materials HRC<20 avoiding influence caused by glide of indenter.
XRock-S304 Specifications:
| Product name | Manual Rockwell Hardness Tester |
| Model | XRock-S304 |
| Measuring range | 20-88HRA, 20-100HRB, 20-70HRC |
| Dial pointer range | A,C (black):0-100; B(red): 30-130 |
| Preliminary test force | 10kgf (98.07N) |
| Rockwell test force | 60Kgf(558.4N), 100Kgf(980.7N), 150Kgf(1471N) |
| Hardness indication | Dial Reading |
| Resolution | 0.5HR |
| Loading control | manual |
| Max height of specimen | 170mm |
| Instrument throat | 135mm |
| Dimension | 470 x 240 x 630mm |
| Packing dimension | 540 x 420 x 700mm |
| Gross/ Net weight | 65Kg/56Kg |
| Execution standard | GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTME-18 |
XRock-S304 Standard Delivery:
| Instrument main body | Ø1.588mm ball indenterl | Weight A |
| Ø58mm V-shape anvil | Ø1.588mm Steel ball | Weight B |
| Hardness block | Cone diamond indenter | Weight C |
| Anti-dust cover | Ø150mm Flat anvil | Accessory box |
| Warranty card | Qualified certificate | Instrument manual |
Brief Introduction:
Rockwell hardness tester is a mechanical manual test with beautiful appearance design, reasonable casting structure, stable performance, high durability and high precision.
XRock-S304 is especially suitable for heat treatment and mold processing workshop. It is easy to operate and suitable for large parts. High stroke, lever loading, manual operation.
XRock-S304 can measure the Rockwell hardness of hard alloy, hardened steel and unhardened steel. Due to its high fuselage, it can be used for hardness testing of large workpieces, and is widely used in machining, automobile manufacturing and repairing units.
