Product Details:
Payment & Shipping Terms:
|
| Model: | QKD-V | Notching Type: | Depends On The Knife |
|---|---|---|---|
| Method: | Electric Motors | Standards: | ISO 179, ISO 180 |
| Application: | Sample Preparation Equipment For Izod & Charpy Test | Working Distance: | Working Distance >90mm |
| Highlight: | ISO 179 Charpy Impact Test Machine,Electric Motors Charpy Impact Test Machine,Notching Type Izod Impact Test Machine |
||

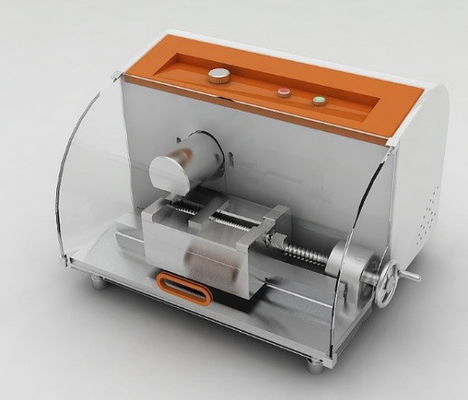

QKD-V Nothing Machine for Izod and Charpy
Impact Test Machine
Brief Introduction:
iqualitrol QKD-V Notching Machine is professional sample preparation equipment for Izod & Charpy test. With electric motors, the notch can be done much better, safer and quicker.
Test Standards:
ISO 179, ISO 180
Technical Specifications:
1, Working Distance >90mm
2, Sample Type: Ⅰ
3, Notching Type: Depends on the Knife
4, Notch:
A: 45°±0.2°,r=0.25±0.05
B: 45°±0.2°, r=1.0±0.05
C: 45°±0.2°, r=0.1±0.02
