| Model: | ZVHBS-3000AET | Hardness Conversion: | Automatically Convert The Unit Of The Full Hardness Scale |
|---|---|---|---|
| Software Correction: | With Software Hardness Value Correction Function, The Hardness Value Can Be Directly Corrected Within A Certain Range | Data Saving: | The Test Data Can Be Automatically Grouped And Saved, Each Group Can Save 10 Data, And Can Save More Than 2000 Data |
| Hardness Value Curve Display: | Hardness Value Curve Display, Which Can Directly Display The Change Of Hardness Value | Value Range Set: | Maximum And Minimum Values Of The Hardness Value Can Be Set, And When The Test Value Exceeds The Set Range, An Alarm Will Sound |
| Highlight: | Motorized Turret Brinell Hardness Tester,260mm Brinell Hardness Tester,150mm Brinell Hardness Testing Machine |
||

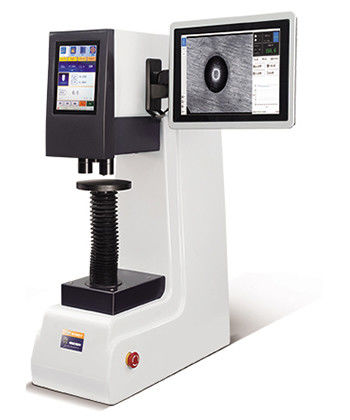

Automatic Visual Digital Brinell Hardness Tester With
CCD Image Analysis System
Model: ZVHBS-3000AET
Technical Specifications of ZVHBS-3000AET:
| Model | ZVHBS-3000AET |
|
Range of Measurement |
5-650HBW |
| Test Force |
306.25, 612.9, 980.7, 1225.9, 1838.8, 2415.8, (31.25, 62.5, 100, 125, 187.5, 250, 500, |
| Maximum Height of Specimen | 260mm |
| Distance between Indenter Center and Wall | 150mm |
| Objectives | 1X, 2X |
| Loading Method | Electric Loading |
| Turret | Motorized Turret |
| Length Resolution | 0.625um |
| Magnification | 20X, 40X |
| Hardness Resolution | 0.1HBW |
| Camera | 3MP |
| Dwell Time | 0-99 Seconds, adjustable |
| Indentation Measure | Automatically and Manually Measure Indentation Diameter |
| Power Supply | AC 220V/50Hz |
| Dimension | 700*300*930mm |
| Weight | 160kg |
