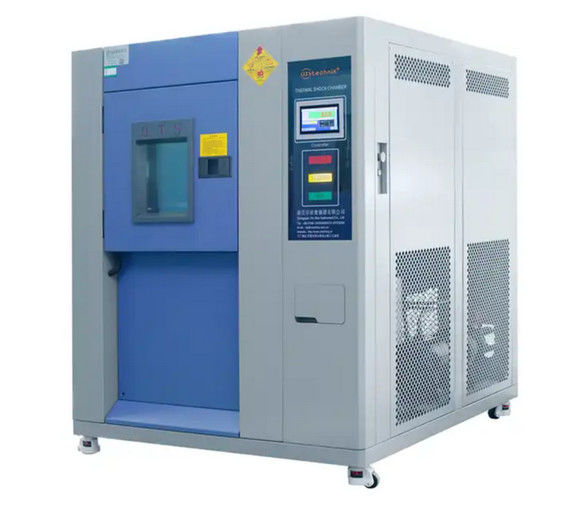

225L Climatic Environmental Thermal Shock Test Chamber
Equipment For Metal And Plastic
Brief Introduction:
Programmable Three Zones Thermal Shock Test Chamber are applicable for testing the changes in physical of the electronic chip IC, PCB, semiconductor ceramic and polymer materials.
And composite material and material structure's result which under continuous environment with high temperature or low temperature shock in short time; it means this product can test the material's chemical change or physics change by expansion and contraction within short time. It's application to metal, plastic, rubber, food, electronic etc.alternation environment.
High memory capacity,can set 120 programs and each program can be repeated for max 9999 times.Each step can be proceeded for max 999 hours and 59 minutes.It's able to communicated with computer via RS485 port,so as to control,edit and record 2 groups of dynamic nodes,easy to operate.
QTS3 series air-to-air thermal shock chambers circulate cold, hot, or ambient air as needed. The conditioned air is pre-cooled or pre-heated beyond the set point, allowing quicker recovery of the desired condition after transfer.
Model Selection:
| Model |
Interior dimensions (W ×H × D) |
Interior Volume |
Exterior dimensions (W ×H × D) |
Specimen loading weight |
| QT3-56A/B/C |
400 ×350× 400mm 15.7”×13.8”×15.7” |
56L |
1450× 1950 ×1600mm 57.1” ×76.8” ×63.0” |
2.5Kg |
| QT3-80A/B/C |
500 ×400× 400mm 19.7”×15.7”×15.7” |
80L |
1550× 2050 ×1600mm 61.0” ×80.7” ×63.0” |
5.0Kg |
| QT3-150A/B/C |
600 ×500× 500mm 23.6”×19.7”×19.7” |
150L |
1650× 2150 ×1800mm 64.9” ×84.7” ×70.9” |
7.5Kg |
| QT3-225A/B/C |
750 ×600× 500mm 29.5”×23.6”×19.7” |
225L |
1850× 2250 ×1800mm 72.8” ×88.6” ×70.9” |
7.5Kg |
Technical Specifications:
| Structure | Pre-cooling Zone, Pre-heating Zone, Testing Zone (Selectable 2-Zone or 3-Zone Test for stationary object test) |
| Damper Device | Forced Air Damper |
| Interior Material | SUS#304 Stainless Steel |
| Exterior Material | stainless steel with environmentally baking paint |
| Testing Shelves | Stainless Steel Plate |
| Refrigeration | Cascade Refrigeration System |
| Cooling Method | Water/Air Cooling |
| Ambient Temperature | 5℃～30℃ |
| Pre-heating Temperature | 80℃～200℃ |
| Pre-cooling Temperature | －40℃ (－60℃/－75℃)～－10℃ |
| High Temp. Shocking | 60℃～150℃ |
| Low Temp. Shocking |
A=―35℃～0℃ B=―55℃～10℃ C=―65℃～10℃ |
| Temp. Uniformity | Less than ±2℃ |
| Transition time | <10 seconds |
| High Temp. Recovery time | RT℃～150℃/5min |
| Low Temp. Recovery time | RT℃～－75℃/5min |
| Pre-heating Time | 40min (30min for 56L) |
| Pre-cooling Time | 80min (60min for 56L) |
| Controller | Powerful interactive LCD touch screen controller |
| Setting Range |
Temperature: －200℃～300℃ Time: 0H1m～9999H59m Cycle: 1～9999cycle |
| Resolution |
Temperature: 0.01℃ Time: 1min |
| Control Method | PID+SSR |
| Power supply | AC380V/50Hz/3P |
| Accessories |
Viewing Window, Cable Port, Chamber Illumination, LCD touch screen controller, Power cable |
| Security System | Overheat Protector, Compressor overload protector, Controller protector, Motor overload protector |
| Notes |
1. Ambient temperature of +23℃ and a cooling water temperature of +25℃ 2. During pre-heating, prevention for temperature heat-up may be worked 3. Performance shown above conforms to IEC61300-2-47 4. Temperature heat-up/pull-down time is applicable only during independent chamber operation |
QTS3 Features:
Automatically setting of pro-cooled and pre-heated air.
Testing samples don’t move, cable port is available for power on testing.
Powerful interactive touch screen controller, easy operation and setting
High accurate temperature recovery with PID auto tuning
Auto defrost function
System alarms are stored in memory for historical review
Operation data can be downloaded as needed, or continually, to USB
Energy saving, low consumption, low noise design.
Lowest error, high speed, test samples exposure smooth.
Testing Standards:
MIL-STD-883E Method 1011.9 Thermal Shock
MIL-STD-202G Method 107G thermal Shock
JIS C 0025 Change of temperature
IEC 61300-2-47 Tests-Thermal Shocks
JESD22-A104C Temperature cycling
GB/T 2423.22-2012 Test N: Change of temperature
GB/T 2431.1-2001 Testing A: Low temperature testing method
GB/T 2431.2-2001 Testing B: High temperature testing method
GB 11158 High and low temperature test term
