Product Details:
Payment & Shipping Terms:
|
| THR20E: | High Speed 21000rpm Refrigerated Centrifuge With Low Noise | Refrigerated Centrifuge: | Pre-cooling Design, 10 Kinds Of Acceleration And Deceleration |
|---|---|---|---|
| Advantage: | High Speed, Low Noise, Compact Design And Small Vibration | LED Display: | Provides Speed, Time And Temperature Parameters |
| Brushless Motor: | Great Torque, No Powder Pollution, Free Maintenance, Quick In Speed Up And Down; | Centrifuge Body: | Made Of High-quality Steel, Imbalance Sensor And Over Speed Sensor |
| Highlight: | Brushless Frequency Motor Refrigerated Centrifuge,Refrigerated Centrifuge With Imbalance Sensor |
||

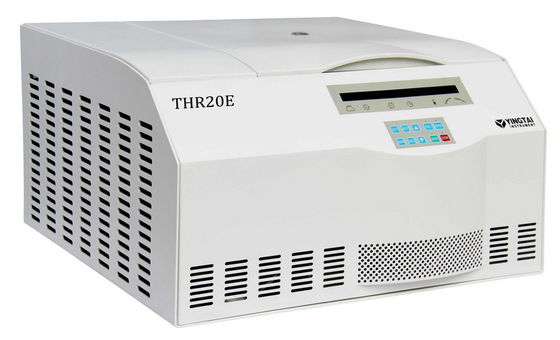

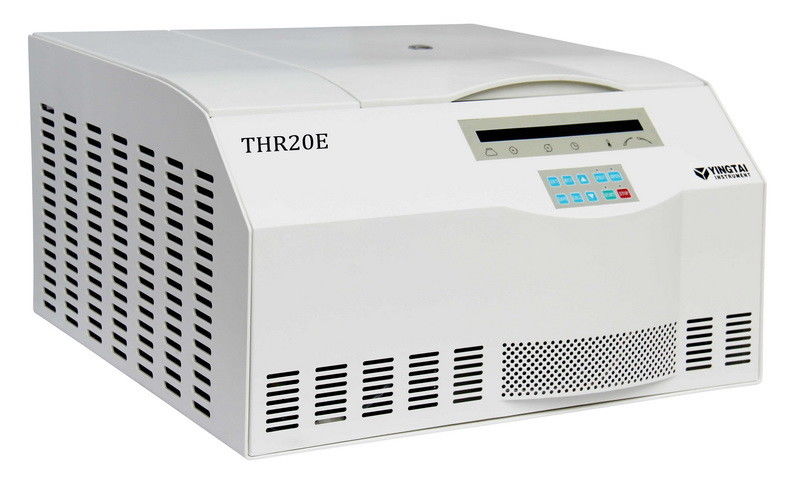

Brushless frequency motor THR20E High Speed Refrigerated Centrifuge Imbalance sensor
Features:
1. Refrigerated centrifuge. Widely used for laboratory, chemistry and hospital.
2. Pre-cooling design, 10 kinds of acceleration and deceleration
3. More than 10 rotors for your choice
4. High speed, low noise, compact design and small vibration
5. User-friendly LED display provides speed, time and temperature parameters.
6. Brushless frequency motor which in great torque, no powder pollution, free maintenance, quick in speed up and down
7. Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.
Technical Specifications:
| Max. Speed | 21000rpm |
| Max. RCF | 40320×g |
| Max. Capacity | 4×800ml |
| Time Range | 0~99h59min |
| RPM/RCF Convert | Yes |
| Noise (dB) | ≤ 55 |
| Temperature | -20℃-40℃ |
| Acc/Dcc | 10 Kinds |
| Speed Accuracy | ±20r/min |
| Temperature Accuracy | ±1℃ |
| Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
| Size (W x D x Hmm) | 700×715×420mm |
| Net Weight(Kg) | 125KG |
| Certificates | CE,ISO & Calibration report are available |
Matched Rotors for THR20E:
| Order No. | Rotor No. | Max Speed (rpm) |
Max Volume (ml) |
Max.RCF(×g) |
| NOH30801 | Angle Rotor | 21000 | 12×1.5/2ml | 30910 |
| NOH30844 | Angle Rotor | 16000 | 48×1.5/2ml | 27170 |
| NOH30803 | Angle Rotor | 20000 | 24×1.5/2ml | 36630 |
| NOH30804 | Angle Rotor | 16500 | 30×1.5/2ml | 28890 |
| NOH30805 | Angle Rotor | 20000 | 16×5ml | 34400 |
| NOH30808 | Angle Rotor | 20000 | 12×10ml | 40320 |
| NOH30807 | Angle Rotor | 15000 | 12×15ml(falcon) | 26650 |
| NOH30810 | Angle Rotor | 20000 | 6×30ml | 38900 |
| NOH30811 | Angle Rotor | 18000 | 6×50ml(Round) | 35920 |
| NOH30812 | Angle Rotor | 18000 | 4×85ml | 36310 |
| NOH30813 | Angle Rotor | 12000 | 4×250ml | 20450 |
| NOH30814 | Angle Rotor | 10000 | 6×300ml | 15730 |
| NOH30815 | Angle Rotor | 12000 | 4×300ml | 21560 |
| NO30671 | Swing Rotor | 4700 |
4×800ml (Round Cup) |
4770 |
| NOH31494 | Microplate Rotor | 5000 | 4×4×96 Well | 4590 |
| NOH31491 | 4000 | 2×4×96 Well | 3210 | |
| NOH31376 | 4000 | 2×3×48 Well | 2300 | |
|
NO30690
|
Swing Rotor | 4000 | 4×40×7ml | 3270 |
| 4×40×5ml | 2890 | |||
| 4×18×10ml | 3130 | |||
| NO30607 | Swing Rotor | 15000 | 4×5ml | 19920 |
| NO30611 | Swing Rotor | 12000 | 4×30ml | 20090 |
| NO30640 | Swing Rotor | 10000 | 4×50ml | 16240 |
