| ASR-5605: | Melt Flow Rate Meter | Printing: | Built-in Micro Printer Automatically Prints Output |
|---|---|---|---|
| Temperature Recovery Time: | Less Than 4 Minutes | Cutting Method: | Manual Cutting, Automatic (optional) |
| Temperature Range: | Room Temperature - 400℃ (500℃ Optional) | Test Load: | A Complete Set Of 8 Levels Of Weights In Total |

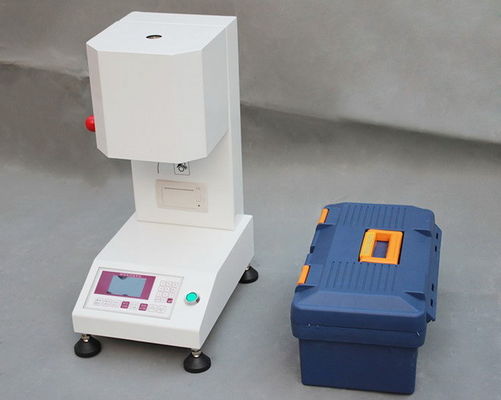

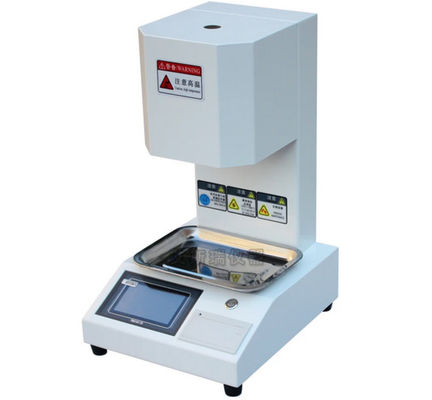

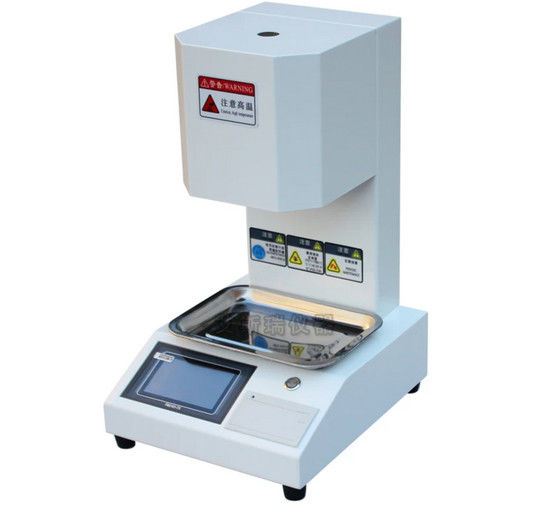

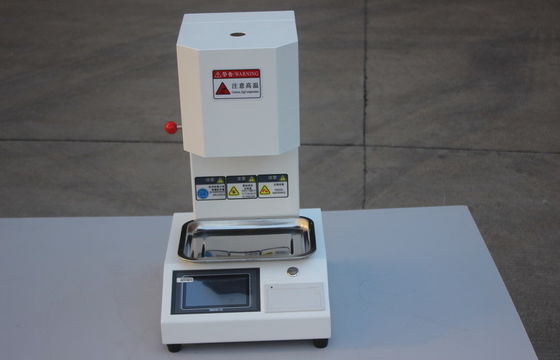

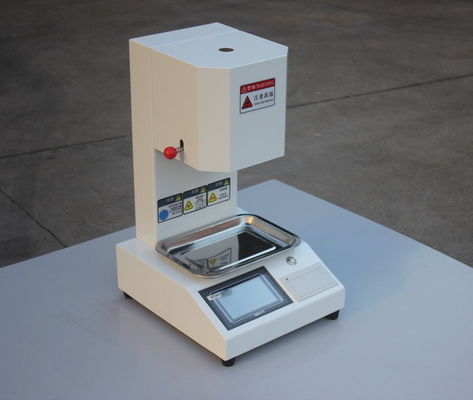

Fast heating speed iqualitrol Melt Flow Rate Meter ASR-5605 with LCD display
I. Product Features:
1. Fast heating speed and minimal overshoot
2. High constant temperature accuracy
3. After filling, the constant temperature state can be quickly restored.
4. The test parameters are easy to calibrate and correct.
5. Manual and automatic cutting test methods can be used
6. LCD display
7. Equipped with a printer to automatically print out test results
II. Main Technical Parameters
1. Extrusion discharge part
Discharge port diameter: Φ2.095±0.005 mm, discharge port length: 8.000±0.025 mm
Charging barrel diameter: Φ9.550±0.025mm, charging barrel length: 152±0.1mm
Piston rod head diameter: 9.475±0.015 mm, piston rod head length: 6.350±0.100 mm
2. Standard test load (a complete set of 8 levels of weights in total)
3. Temperature range: normal room temperature - 400℃ (500℃ optional)
4. Constant temperature accuracy: ±0.5℃
5. Display resolution: 0.1℃
6. Cutting method: manual or automatic cutting optional
7. Temperature recovery time: less than 4 minutes
8. Printing: Micro printer automatically prints output
9. Power supply voltage: AC220V±10% 50HZ
Technical Parameter:
| Temperature Range | 0℃-450℃ |
| Temperature Fluctuation | ±0.2℃ |
| Temperature Uniformity | ±1℃ |
| Display | Chinese and English color LCD |
| Temperature-display Resolution | 0.1℃ |
| Time-display Resolution | 0.1s |
| Diameter of Barrel | Φ2.095±0.005mm |
| Length of the Discharge Port | 8.000±0.025mm |
| Diameter of Loaded Barrel | Φ9.550±0.025mm |
| Accuracy of Weight | ±0.5% |
| Output | Mini-automatic printout |
| Ways of Material-cutting | manual and automatic |
| Testing Load | 8 levels in total, eight sets of weights |
| Power Supply Voltage | AC220V±10%, 50Hz |
Brief Introduction:
Melt Index Tester meets the standards GB/ T3682-2000, the main parameters of Melt Index Tester also meet the standard requirements of ISO1133-97, ASTM1238, JIS, ect..
It is used in polyethylene, polypropylene, polystyrene, ABS, polyethylene amide, fiber resin, acrylic, POM, fluorine plastic, polycarbonate, and other plastic materials, to measure MFR and MVR.
It is widely applied to various industries like plastic production, plastic products, petrochemical, and related institutions, research institutes and inspection departments.
