Product Details:
Payment & Shipping Terms:
|
| Model: | MHBS-3000 | Display: | LCD Touch Screen Display Interface |
|---|---|---|---|
| Height: | Max Specimen Height 280mm | Data Output: | Built-in Printer |
| Throat: | Max Horizontal Space 150mm | Range: | 8~650HBW |

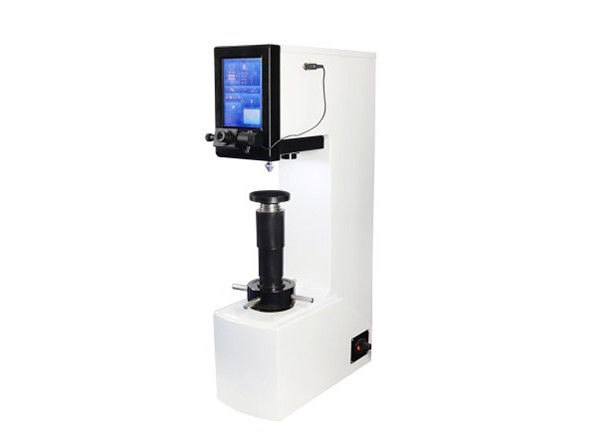

Touch Screen Brinell Hardness Tester MHBS-3000 with Built in Printer
Brief Introduction:
MHBS-3000 Electronic Digital Brinell Hardness Tester can display the data of each operation process and test results on the LCD touch screen, and the data of the test results can be output through the printer.
This machine is suitable for all kinds of production and processing enterprises, colleges and universities, laboratories of scientific research machinery.
Determination of the Brinell hardness of ferrous metals, non-ferrous metals and bearing alloy materials, with a wide range of applications, suitable for precise measurement of parallel planes, and stable and reliable measurement of curved surfaces.
Main Specifications:
| MHBS-3000 | Specifications |
| Test force | 31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| 306.45N, 612.9N, 980.7N, 1266N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
| Convertible ruler | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Measuring range | 8~650HBW |
| Data output | Built-in printer |
| Maximum allowable height of the test piece | 280mm |
| Indenter diameter(mm) | Choose one of Φ1 and Φ2.5, Φ5 and Φ10 |
| Objective lens | 1x,2X |
| The distance from the center of the indenter to the machine wall | 150mm |
| Power supply | AC220V,50Hz |
| Hardness reading | Digital display touch screen LCD to read hardness value |
| Implementation standard | ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2 |
| Dimensions | 1000×595×350mm |
| Weight | 150Kg |
