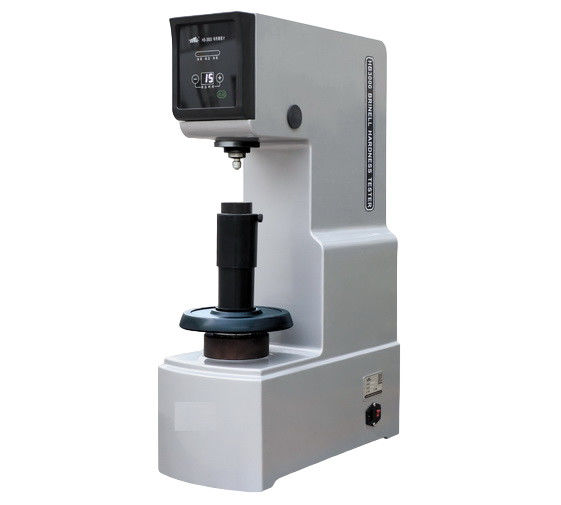

Black Crystal Touch Screen Brinell Hardness Tester HB-3000 Ball Indenter 10mm

Name: Black Crystal Touch Screen Brinell Hardness Tester HB-3000 Ball Indenter 10mm
Brand: iqualitrol
SKU: HB-3000
Rating: 4.9 (130 reviews)

Large Image : Black Crystal Touch Screen Brinell Hardness Tester HB-3000 Ball Indenter 10mm

Product Details:

Place of Origin:	Dongguan/China
Brand Name:	iqualitrol
Certification:	CE, ISO
Model Number:	HB-3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiate in details
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	T/T, Western Union
Supply Ability:	10 Sets per Month

Contact Now

Detailed Product Description

Model:	Iqualitrol HB-3000	Test Space:	220mm * 125mm
Standards:	GB/T 230.2, ISO 6508-2 , ASTM E18 And JIS Z2245	Buttons:	Black Crystal Touch Screen Button With Long Life
Loading:	Weights Loading	Magnification:	20X With Resolution 0.01mm

Black Crystal Touch Screen Brinell Hardness Tester HB-3000 Ball Indenter 10mm

Technical Data Download: iqualitrol Brinell Tester HB-3000

Main features:

Black crystal touch screen button with long life;

Precision coating, weight loading,stable structure and no deformation;

Ability to work in harsh environments;

Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 , ASTM E18 and JIS Z2245.

Applications:

It's suitable to determine the Brinell hardness of unquenched steel,cast iron, non-ferrous metals and soft bearing alloys,etc.

Technical Parameters:

Measuring range:	8-650HBW
Test force	1838.8,2415.8,7355.3,9807,29421N(187.5,250,750,1000,3000kgf)
Max. height of test piece	220mm
Depth of Throat	125mm
Dimensions:	832×710×243mm
Voltage	AC220V/50HZ
Weight	125kg

Tag:

Digital Brinell Hardness Tester,

Brinell Hardness Test Equipment,

Brinell Hardness Apparatus

Contact Details

Dongguan Quality Control Technology Co., Ltd.

Contact Person: Mr. Raymond Chung

Tel: 86-13711988687

Fax: 86-769-22784276

Other Products

Electronic Loading Brinell Hardness Tester 300HB-3000 with Touch Screen USB Interface

Model: 300HB-3000

Display: 8-inch LCD Touch Screen

Loading: Fully Automatic Closed-loop Sensor Control System

Database Storage: Test Data Is Stored Synchronously And Can Be Exported

Digital Brinell Hardness Tester 300MHB-3000 Close Loop Sensor Control System

Model: 300MHB-3000

Microscope: Digital 20X Measuring Microscope

Loading Forces: 12 Test Scales; 10 Levels Of Test Force, Force Range: 62.5kgf-3000kgf

Data Process: USB And RS232 Interfaces, Optional Printer

Automatic Heavy Duty Brinell Hardness Tester HBS-3000DZ with One Key Operation

Model: HBS-3000DZ

Lifting Structure: One-button start, automatic ascending and descending of Z axis

Control System: fully automatic closed-loop pressure sensor control system

Test Process: automated, the operation is simple, and there is no human error

Max Height 300mm Electronic Brinell Hardness Tester IQUALITROL 400HB-3000 with Touch Screen

Model: 400HB-3000

Test Space: Height 300mm * Depth 150mm

Control System: high-speed processor, fully automatic closed-loop pressure sensor control system

Display: 7-inch LCD touch screen, reading microscope under the machine measurement, manual input of indentation diameter

Weights Loading Automatic Turret Digital Brinell Hardness Tester Support Hardness Conversion

210HBS-3000: manual turret

220HBS-3000: automatic turret

Test Standard: GB/T231.2, ISO6506-2 and American ASTM E10

Data Process: USB and RS232 interfaces, convenient for users to process data
