Product Details:
Payment & Shipping Terms:
|
| Model: | Iqualitrol DHB-3000 | Button: | High-sensitivity Touch Buttons |
|---|---|---|---|
| Display: | High-brightness Technique And Large-size LED Digital Tubes | Structure: | Precision Coating, Weight Loading, Stable Structure And No Deformation |
| Application: | Unquenched Steel,cast Iron, Non-ferrous Metals And Soft Bearing Alloys | Test Space: | 210mm * 150mm |

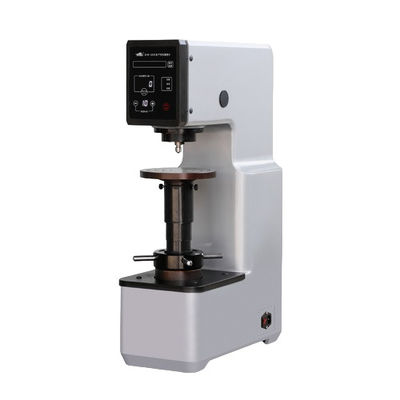

High Sensitive Touch Type Electronic Brinell Hardness Tester DHB-3000
Technical Data Download: iqualitrol Brinell Tester DHB-3000
Brief Introduction:
The operation of iqualitrol DHB-3000 electronic Brinell hardness tester uses high-sensitivity touch buttons, which avoids the short service life of traditional membrane buttons and mechanical buttons, making it easier for the operator to use and clean; dynamic load force value display and dwell time.
The display uses iqualitrol high-brightness technique and large-size LED digital tubes to bring users a more comfortable operating experience.
Main features:
Black crystal touch screen button with long life;
Precision coating, weight loading, stable structure and no deformation;
Ability to work in harsh environments;
Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 , ASTM E18 and JIS Z2245.
Applications:
It's suitable to determine the Brinell hardness of unquenched steel,cast iron, non-ferrous metals and soft bearing alloys, etc.
Technical Specifications:
| Measuring range: | 8-650HBW |
| Test force | 1838.8, 2415.8, 7355.3, 9807, 29421N (187.5, 250, 750, 1000, 3000kgf) |
| Max. height of test piece | 210mm |
| Depth of Throat | 150mm |
| Dimensions: | 832×710×243mm |
| Voltage | AC220V/50HZ |
| Weight | 125kg |
