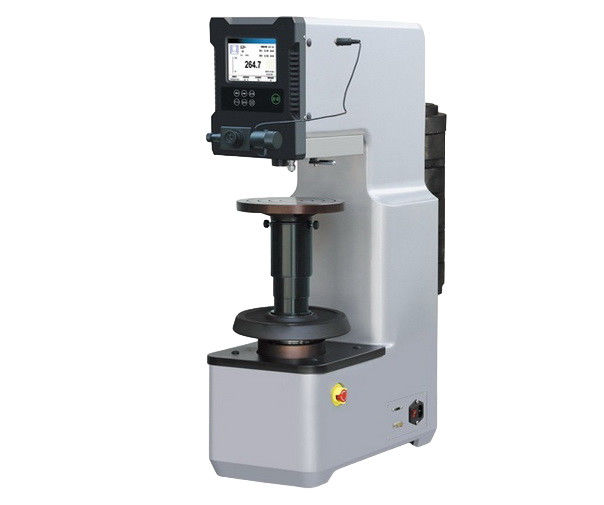

Weight Loading Digital Brinell Hardness Tester HBS-3000S with Large LCD Screen

Name: Weight Loading Digital Brinell Hardness Tester HBS-3000S with Large LCD Screen
Brand: iqualitrol
SKU: HBS-3000S
Rating: 4.5 (175 reviews)

Large Image : Weight Loading Digital Brinell Hardness Tester HBS-3000S with Large LCD Screen

Product Details:

Place of Origin:	Dongguan/China
Brand Name:	iqualitrol
Certification:	CE, ISO
Model Number:	HBS-3000S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiate in details
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	T/T, Western Union
Supply Ability:	10 Sets per Month

Contact Now

Detailed Product Description

HBS-3000S:	Magnifications 20X, 40X	HBS-3000A:	Magnifications 20X
Loading Method:	Weight Loading	Display:	Large Screen Display
Depth Throat:	175mm	Brinell Range:	8~650HBW

Weight Loading Digital Brinell Hardness Tester HBS-3000S with Large LCD Screen

Technical Data Download: iqualitrol Brinell Tester HBS-3000S

Technical Specifications:

Model	HBS-3000S, double lens	HBS-3000A, single lens
Loading force	612.9N (62.5kgf), 2452N (250kgf), 9800N (1000kgf) 1839N (187.5kgf) 7355N (750kgf), 29400N (3000kgf)


Brinell hardness range	8~650HBW


Loading Method	Weight Loading
Magnifications	20X, 40X	20X
Dwell Time	0~60s
Indenters	Φ10mm, Φ5mm, Φ2.5mm
Resolution	0.001 mm
Max Specimen Height	280mm	320mm
Depth throat	175 mm
Standards	ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2
Power supply	AC220V/50HZ
