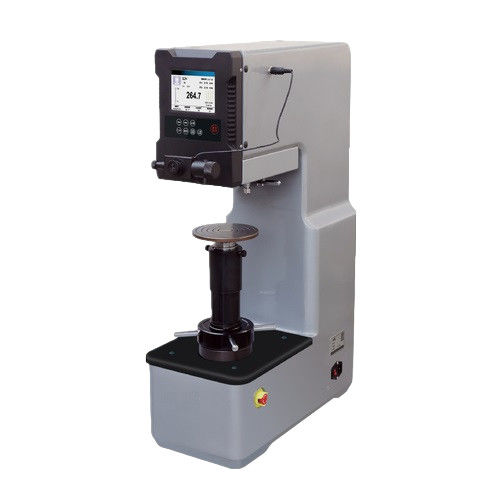

Automatic Electronic Closed-Loop Sensor Digital Brinell Hardness Tester HBS-3000E

Automatic Electronic Closed-Loop Sensor Digital Brinell Hardness Tester HBS-3000E
Automatic Electronic Closed-Loop Sensor Digital Brinell Hardness Tester HBS-3000E

Large Image :  Automatic Electronic Closed-Loop Sensor Digital Brinell Hardness Tester HBS-3000E

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: HBS-3000E
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
HBS-3000E: Lens 1x, Height 320mm HBS-3000F: Lens 1x And 2x, Height 280mm
Loading Control: Fully Automatic Electronic Closed-loop Pressure Sensor Control System Display: High-definition LCD Display, Simple Interface And Easy Operation
Value Correction: By Software Hardness Value Correction Function Data Saving: Test Data Is Automatically Grouped And Saved



Automatic Electronic Closed-Loop Sensor Digital Brinell Hardness Tester HBS-3000E



Technical Data Download: iqualitrol Brinell Tester HBS-3000E



Product Overview:

Hardness is one of the important indicators of the mechanical properties of materials, and hardness testing is an important means of judging the quality of metal materials or product parts. The so-called hardness refers to the ability of a material to resist the pressure of another object without residual deformation under certain conditions. The greater the resistance, the higher the hardness, and vice versa.



Brinell hardness test is mainly used to measure the hardness of materials such as cast iron, steel, non-ferrous metals and soft alloys. In addition, it can also be used to measure the hardness of some non-metallic materials such as hard plastics and bakelite. Suitable for factories, workshops, laboratories, colleges and universities and scientific research institutions.



Product advantages:

1. Adopting a fully automatic electronic closed-loop pressure sensor control system, it can easily realize automatic operation of loading, maintaining load and unloading;

2. The product body adopts precision casting technology, with stable performance and elegant appearance;

3. High-definition LCD display, simple interface and easy operation;

4. Precise control system can automatically perform unit conversion of the full hardness scale;

5. It has software hardness value correction function, which can directly correct the hardness value within a certain range;

6. The test data is automatically grouped and saved. Each group of the database can save 10 data, and a total of more than 1,000 data can be saved;

7. The upper and lower limits of the hardness value can be set. When the test value exceeds the set range, an automatic alarm will occur;



Technical Specifications:

Model HBS3000E HBS3000F
Test force 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Hardness Range 8~650HBW
Hardness Reading LCD Display
Magnifications 20×
Lens 1x 1×, 2×
Resolution 0.001mm
Turret Manually Turret
Dwell Time 0~60s
Indenters φ10mm, φ5mm, φ2.5mm
Specimen Max Height 320mm 280mm
Depth Throat 175mm
Test Standards ISO 18265, ASTM E140, GB/T 1172
Weight 165kg
Power Supply AC220V/50Hz
Dimension 560×270×920mm
