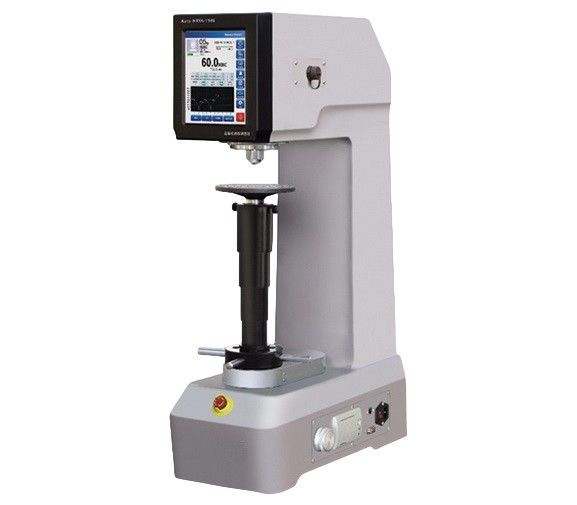

Full Rockwell Scales Digital Hardness Tester HRSA-150S with Touch Screen Mini Printer

Full Rockwell Scales Digital Hardness Tester HRSA-150S with Touch Screen Mini Printer

Technical Data Download: iqualitrol Rockwell Tester HRSA-150S

1. Product Overview:
This iqualitrol HRSA-150S Rockwell hardness tester can be used to test hard metals and alloys, non-ferrous metals, alloy steel, tool steel, quenched steel, thin plates, stainless steel, cast iron, powder metallurgy, copper and copper alloys, aluminum and aluminum alloys, hard plastics, etc.

iqualitrol HRSA-150S adopts a high-definition 8-inch touch screen, which is highly integrated with light, electricity and machinery.

It is equipped with five indenters required for Rockwell hardness, which can realize the measurement of all Rockwell scales. This hardness tester uses precision steppers motor automatically loads, dwell and unloads the test force.

The measured hardness value is automatically calculated by the local software system and displayed on the display. A data curve can also be automatically generated for each set of test data.

iqualitrol HRSA-150S also equips with a built-in printer, RS232 interface, network port and USB interface, which greatly facilitates user operations such as printing and exporting test data.

The touch screen human-computer interaction interface has a simple and beautiful layout, and the icons are concise and easy to understand. The required test parameters such as indenter, test force, test force holding time, etc. can be quickly set, making the machine have good reliability, operability and repeatability. It is an ideal product for users to conduct Rockwell hardness testing.

Technical Specifications:



2. Product advantages:
2.1. Set the hardness test range: Set the upper and lower limits of the test according to the workpiece hardness compliance requirements. The test results can more intuitively determine whether the workpiece hardness is qualified (black hardness values are displayed as qualified, red hardness values are displayed as unqualified)

2.2. Loading process time monitoring: When the test workpiece is not placed or the start button is accidentally touched, empty loading times out and automatically stops loading to protect the equipment from damage.

2.3. Initial test force progress indicator bar: During manual operation, when the workpiece contacts the indenter, the screen immediately displays the initial test force progress bar, which can avoid excessive application of the initial test force and produce test errors.

2.4. Three hardness conversion standards: There are three built-in hardness conversion standards, namely: national standard, European standard, and American standard. Select the required conversion standard and scale, and the converted hardness value and test results will be displayed at the same time.

2.5. Multi-point test data analysis: The test interface displays multi-point test analysis results in real time, such as the number of tests, the highest and lowest values of this group of tests, the average value and the standard deviation, which can make the hardness test more accurate and test more efficient.

2.6. Multi-point test line chart: The test interface displays multi-point test polylines in real time, and the hardness range can be set to facilitate the judgment of the hardness exceeding the limit point; during multi-point testing without setting upper and lower limits, the ordinate automatically adjusts the value. Make polyline dynamics clearer.

2.7. The hardness tester can be connected to the Internet: The hardness tester can be connected to the cloud server through Ethernet to realize remote sharing of hardness test data. It can be used for historical data tracing, timely discovery of hardness defects, and correction of production and manufacturing processes.

2.8. Real-time and historical data upload: Test data can be uploaded to a mobile phone via Bluetooth or to a computer via a network cable. The uploaded data can be uploaded at each test point or at each test group.

2.9. Test data printing: The test data can be printed through the built-in printer or Bluetooth printer, or it can be imported into the computer and printed through the computer connected to the printer.
