Product Details:
Payment & Shipping Terms:
|
| Model: | HB-3000 | Test Space: | 230mm * 120mm |
|---|---|---|---|
| Measurement: | High-precision Reading Microscope 20x | Feature: | Strong Structure, Good Rigidity, Reliable, Durable |

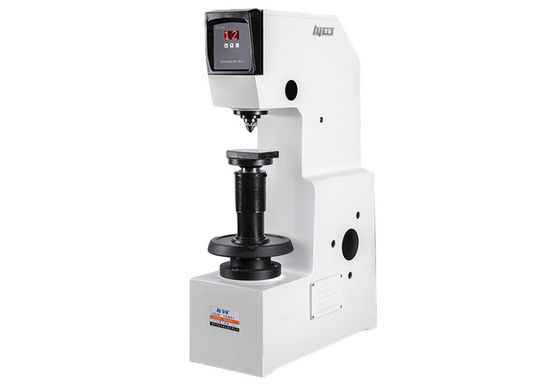

Basic Type Brinell Hardness Tester HB-3000 with 20X Measuring Microscope
Technical Data Download: iqualitrol HB-3000 Brinell Hardness Tester
Technical Specifications:
| Measuring range: | 8-650HBW |
| Test force |
1838.8, 2451.8, 4903.5, 7355.3, 187.5, 250, 500, 750, 1000, 1500, 3000(kgf) |
| Brinell Scales | HBW2.5/187.5, HBW5/250, HBW5/750, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Max. height of test piece | 230mm |
| Depth of Throat | 120mm |
| Dimensions: | 700×268×842mm |
| Voltage | AC220V/50HZ |
| Weight | 215kg |
Main Features:
1, Strong structure, good rigidity, reliable, durable, high test efficiency;
2, Electronic reversing switch;
3, High-precision reading microscope measurement system.
4, Widely used in quality monitoring in production sites, with strong adaptability to working environments;
5, Accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.
Scope of Application:
1, Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
2, Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;
3, Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
4, Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
