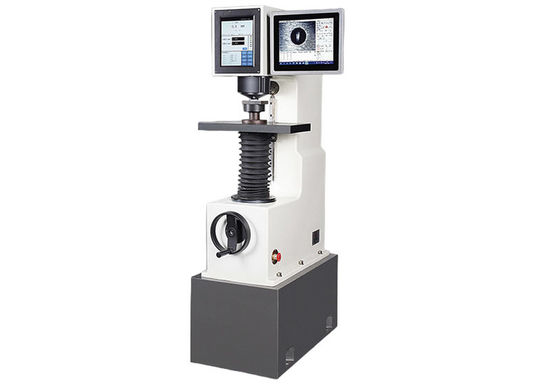

Vision Measuring Heavy Duty Digital Brinell Hardness Tester HBS-3000D with 10 Steps Test Forces

Vision Measuring Heavy Duty Digital Brinell Hardness Tester HBS-3000D with 10 Steps Test Forces


Main features:

● The test force application mechanism designed by applying Pascal's law is stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;

● The test force application mechanism, pressure sensor and Brinell spindle indenter are directly connected to form the Brinell hardness test head technology-bistable direct-drive hardness tester loading unit, which has obtained a national invention patent and two utility model patents;

● Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of test force loading and unloading, stable and impact-free, high force value accuracy;

● Automatic turret; fully automatic conversion of optical lens and indenter;

● Cast iron casing, solid structure, good rigidity, reliable, durable, high test efficiency;

● 10.4-inch LCD touch screen; test force application-holding-removal is fully automatic;

● The indentation image, test force, indentation length, dwell time, number of measurements, hardness value, etc. are displayed on the computer, which is easy to operate;

● The test process is automated, simple to operate, and there is no human error;

● 12 test scales; 10 test force levels, force range: 62.5kgf-3000kgf;

● Large measuring stroke, wide distance from the center of the indenter to the machine wall, suitable for measuring large workpieces;

● Chinese and English language interface conversion; various hardness value conversion;

● With database storage data function, test data is stored synchronously and can be exported;

● Equipped with USB and RS232 interfaces, it is convenient for users to process data;

● Adopt CCD image measurement technology, automatically capture indentation, automatically measure indentation diameter, automatically display hardness value and can voice report;

● Through RS232 interface and data cable, HBS-3000D connects with the integrated touch screen industrial computer to control various actions of the hardness tester on the computer, including: selection and application of test force, switching of indenter and objective lens, setting of dwell time, etc.; test report can be output and printed in Word or Excel format;

● Accuracy meets GB/T231.2, ISO6506-2 and ASTM E10.


Scope of application:
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;

● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.

Technical Specification:
