| Model: | HBMS-3000C | Test Report: | Test Report Can Be Output And Printed In Word Or Excel Format |
|---|---|---|---|
| Indentation Measuring: | Automatically Capture Indentation, Automatically Measure Indentation Diameter, Automatically Display Hardness Value | Loading Control: | One-button Start, Automatically Complete Loading-dwell-unloading, The Indenter And Camera Automatical Turret |

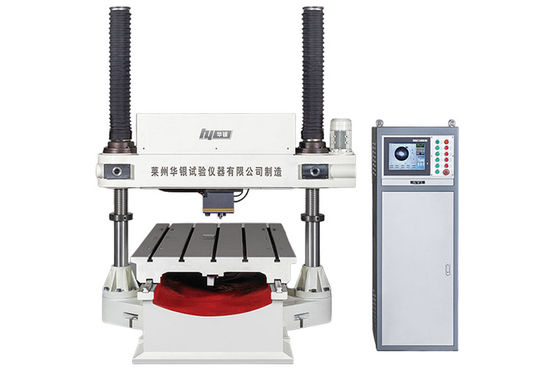

Bridge Type Digital Brinell Hardness Tester HBMS-3000C with Brinell Vision Measuring Software
iqualitrol HBMS-3000C uses CCD image measurement technology and has the following enhanced functions:
● Automatically capture indentation, automatically measure indentation diameter, automatically display hardness value and can generate report;
● One-button start, automatically complete loading-dwell-unloading, the indenter and camera automatically switch positions, automatically perform indentation measurement and hardness value display, the test process is automated, and there is no human error;
● The test report can be output and printed in Word or Excel format;
● Chinese and English language interface conversion; various hardness value conversion;
● With database storage data function, test data is stored synchronously and can be exported;
● Equipped with RS232 interface, it is convenient for users to process data;
● The accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.
Technical Specifications:
| Brinell Hardness Ranges | 16-650HBW |
| Loading Force |
4903.5, 7355.3, 9807, 14710.5, 29421(N) 500, 750, 1000, 1500, 3000(kgf) |
| Brinell Scales | HBW5/750, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Max Specimen Height | 950mm (customizable) |
| Horizontal Travel of structure | 650mm (customizable) |
| Workbench Dimension | 1500X1000mm (customizable) |
| Workbench Travel | 1000mm (customizable) |
| Pillar Distance | 1350mm (customizable) |
| Workbench Loading Weight | Less than 5000Kg (customizable) |
| Power supply | AC220V/50Hz |
| Overall size | 2000x1800 x 2180mm (customizable) |
| Net weight | 3000Kg (customizable) |
Scope of application:
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;
● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
