Portable Brinell Hardness Tester HBX-0.5 with Impact Energy 4.9J

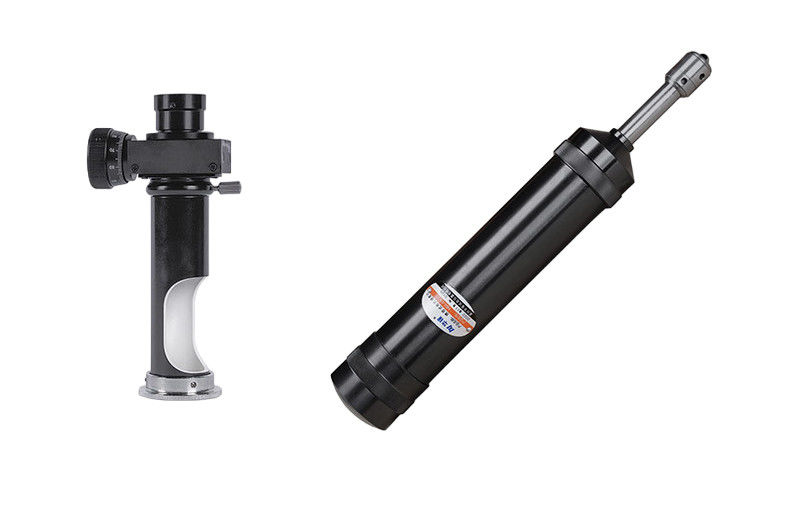

Large Image : Portable Brinell Hardness Tester HBX-0.5 with Impact Energy 4.9J

Product Details:

Brand Name:	iqualitrol
Model Number:	HBX-0.5

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Box
Delivery Time:	3 Working Days
Payment Terms:	T/T
Supply Ability:	10 Sets per Month

Contact Now

Detailed Product Description

Model:	HBX-0.5	Brinell Range:	Measuring Range: 100-400HBS
Microscope:	20X Reading Microscope	Energy:	Impact Energy 4.9J

Portable Brinell Hardness Tester HBX-0.5 with Impact Energy 4.9J

Main Features:

● Small size, easy to carry, simple to operate;

● Simple structure, durable, high test efficiency;

● High-precision reading microscope measurement system.

Scope of Application:

● Determine the Brinell hardness of ferrous metals with an elastic modulus approximately equal to 2×105MPa;

● Especially suitable for Brinell hardness testing of large parts at the work site.

Technical Specifications:

● Measuring range: 100-400HBS

● Impact energy: 4.9J

● Dimensions: 55x370 (mm)

● Weight: about 3.3kg

Main Accessories:

● Carrying Brinell standard hardness block: 1 piece

● 20X reading microscope: 1

Tag:

Digital Brinell Hardness Tester,

Brinell Hardness Test Equipment,

Brinell Hardness Apparatus
