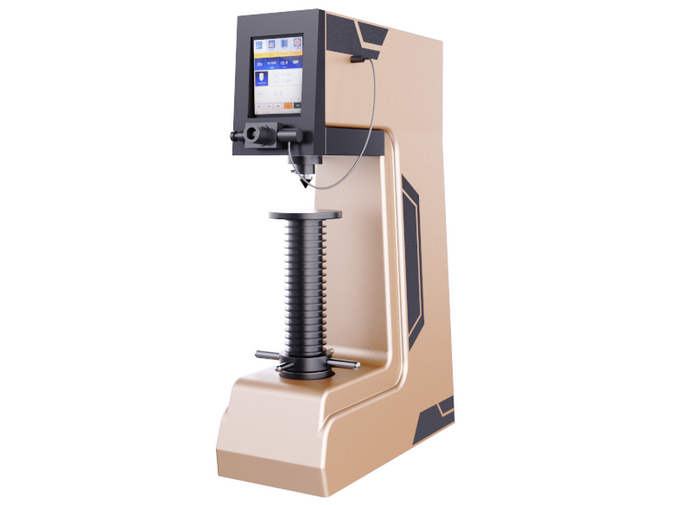

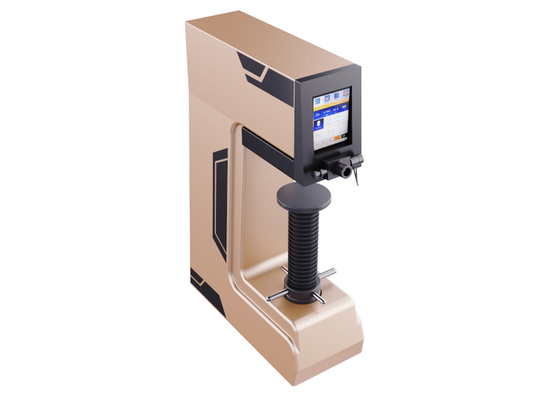

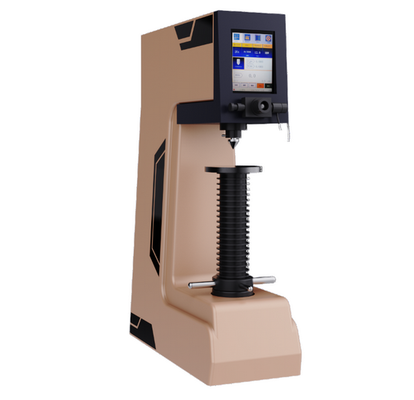

Closed Loop Control Digital Brinell Hardness Tester HBST-3000E with Touch Screen

automatic platform: automatically rises, and after applying the test force, it returns to the focal plane

Turret: Auto Turret, Three indenters & two objective lenses

Touch screen: for parameter setting and result display more intuitive and convenient to operate

Data output: USB interface, VGA interface and network port

Automatic measurement: automatically or manually capture the indentation, measure the indentation diameter and calculate the corresponding Brinell hardness value

Equipment control: supports one click start of loading and unloadin, turret homing and automatic measurement, independent control of the rise and fall of the hardness tester platform

Hardness value conversion: can convert the measured Brinell hardness value HB into other hardness values, such as HV, HR, etc.

Data statistics: automatically calculates the average value, repeatability error, variance and other statistical values of the measured hardness

turret: 4 Ball Indenters And Two Sets (1x And 2x) Of Objective Lenses

touch screen: Set Test Force, Dwell Time, Adjust Light Source, Display Indentation Length, Hardness Value

test report: WORD Or EXCEL Reports, Which Can Be Directly Saved Or Output By An External Printer

interface modes: USB Interface, RJ45LAN, WLAN, RS232 Port

Model: 300MHB-3000

Microscope: Digital 20X Measuring Microscope

Loading Forces: 12 Test Scales; 10 Levels Of Test Force, Force Range: 62.5kgf-3000kgf

Data Process: USB And RS232 Interfaces, Optional Printer

Model: 400HB-3000

Test Space: Height 300mm * Depth 150mm

Control System: high-speed processor, fully automatic closed-loop pressure sensor control system

Display: 7-inch LCD touch screen, reading microscope under the machine measurement, manual input of indentation diameter
