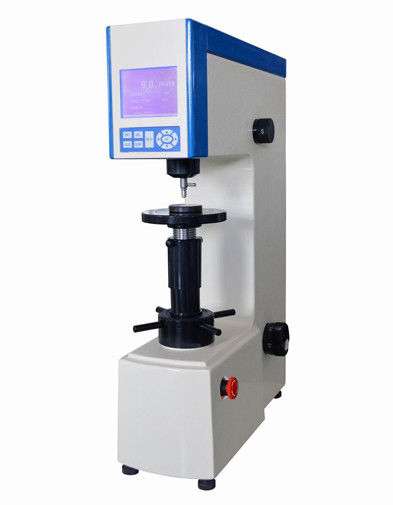

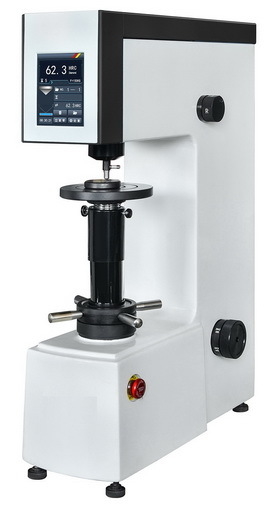

LCD Screen Twin Rockwell Hardness Testing Machine 0.1HR With Vertical Space 175mm

LCD Screen Twin Rockwell Hardness Testing Machine 0.1HR With Vertical Space 175mm
LCD Screen Twin Rockwell Hardness Testing Machine 0.1HR With Vertical Space 175mm

Large Image :  LCD Screen Twin Rockwell Hardness Testing Machine 0.1HR With Vertical Space 175mm

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: iRock-438T
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Test Mode: Rockwell And Superficial Rockwell Data Output: Built-in Printer, RS232 Interface
Vertical Space: 175mm Throat: 165mm
Resolution: 0.1HR Dwell Time: 0 - 60 Seconds, Adjustable
High Light:

LCD Screen Rockwell Hardness Testing Machine

,

Rockwell Hardness Testing Machine CE



Large LCD Superficial Digital Twin Rockwell Hardness Testing Machine with Vertical 175mm



Technical Specification:

Model iRock-438T
Initial Test Force 3kgf (29.42N), 10kgf (98.07N)
Total Test Force 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading LCD Screen Display
Test Scale HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Data Output Built-in Printer, RS232 Interface
Resolution 0.1HR
Dwell Time 0~60s
Vertical Space 175mm
Throat 165mm
Power Supply AC220V,50Hz
Execute Standard ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2
Dimension 520×215×740mm,Packing Dimension: 650×370×980mm
Weight Net Weight: 80kg,Gross Weight: 100kg



Brief Introduction:

iRock-438T Digital Twin Rockwell hardness tester equips with a newly-designed large LCD screen with good reliability, excellent operation and easy reading, It can show and set the scale, test force, indenter, dwell time and hardness conversion.

Main function as follows:
1, Available to test all the Rockwell and superficial Rockwell scales;
2, Support hardness conversion among 17 hardness scales;
3, Test results can be saved and printed out,
4, Automatically calculate of maximum, minimum and average value;
5, RS232 interface for data transferring to computer.

Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.

Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
ф1.588mmBall Indenter 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Hardness Block70~85 HR30T 1 pc
Hardness Block 65~80 HR30N 1 pc Weight 1, 2, 3, 4, 5 5 pcs
Power Cable 1 pc Fuse 2A 2 pcs
Level 1 pc Horizontal Regulating Screw 4 pcs
Screw Driver 1 pc Spanner 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy



What is Rockwell Testing?

The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.



Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales) and Rockwell superficial testing (e.g., 30 N and 30 T scales).



High Rockwell hardness numbers represent hard materials and low numbers soft materials.
