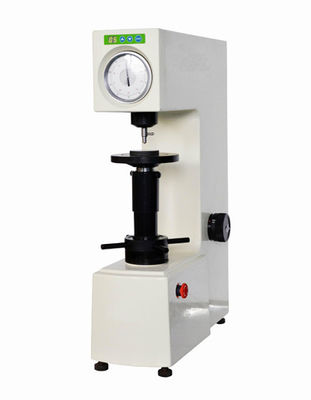

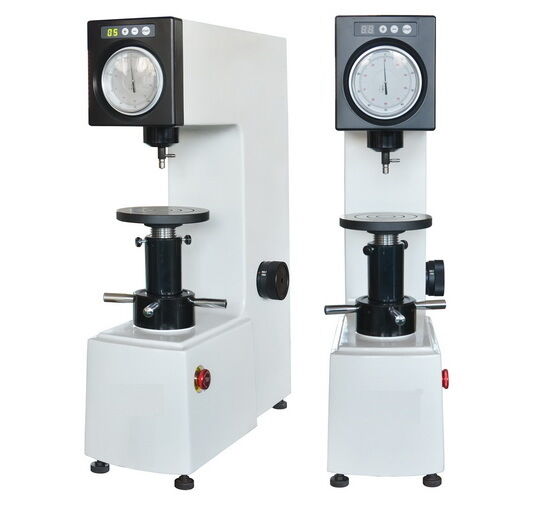

Motorized Loading Rockwell Test Machine 0.5HR Resolution Dial Reading

Motorized Loading Rockwell Test Machine 0.5HR Resolution Dial Reading
Motorized Loading Rockwell Test Machine 0.5HR Resolution Dial Reading Motorized Loading Rockwell Test Machine 0.5HR Resolution Dial Reading Motorized Loading Rockwell Test Machine 0.5HR Resolution Dial Reading

Large Image :  Motorized Loading Rockwell Test Machine 0.5HR Resolution Dial Reading

Product Details:
Brand Name: iqualitrol
Model Number: iRock-431M
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 30 Sets per Month
Detailed Product Description
Loading: Motorized Loading Hardness: Dial Reading 0.5HR
Height: 175mm Throat: 165mm
Dwell Time: 0 - 60 Seconds, Adjustable Initial Force: 10Kgf (98N)
Highlight:

Motorized Loading Rockwell Test Machine

,

Rockwell Test Machine 0.5HR



Motorized Loading Rockwell Hardness Testing Machine with 0.5HR Resolution


Technical Data Download: iqualitrol Rockwell Hardness Tester iRock-431M

Product Profile:
iRock-431M Motorized Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel.

It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability.

Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.



Technical Specifications:

Model iRock-431M
Initial Test Force 10kgf (98.07N)
Total Test Force 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading Dial
Resolution 0.5HR
Dwell Time 2~60s
Max. Height of Specimen 175mm
Throat 165mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 520×215×700mm, Packing Dimension: 650×370×950mm
Weight Net Weight: 78kg, Gross Weight: 100kg



Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Rockwell Indenter 1 pc
ф1.588mmBall Indenter 1 pc Middle Plane Test Table 1 pc
Large Plane Test Table 1 pc V-shaped Test Table 1 pc
Hardness Block 60~70 HRC 1 pc Hardness Block 20~30 HRC 1 pc
Hardness Block 80~100 HRB 1 pc Weight A, B, C 3 pcs
Power Cable 1 pc Fuse 2A 2 pcs
Level 1 pc Horizontal Regulating Screw 4 pcs
Screw Driver 1 pc Spanner 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy


The Rockwell test consists of measuring the additional depth to which a carbide ball or diamond penetrator is forced by a heavy (major) load beyond the depth of a previously applied light (minor) load (SET point).

The minor load is applied first and a SET position is established on the dial gauge or displacement sensor of the Rockwell tester. Then the major load is applied. Without moving the piece being tested, the major load is removed and, with the minor load still applied, the Rockwell hardness number is automatically indicated on the dial gauge or digital display.

The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.

Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales) and Rockwell superficial testing (e.g., 30 N and 30 T scales).

Motorized Loading Rockwell Test Machine 0.5HR Resolution Dial Reading 0


High Rockwell hardness numbers represent hard materials and low numbers soft materials.
