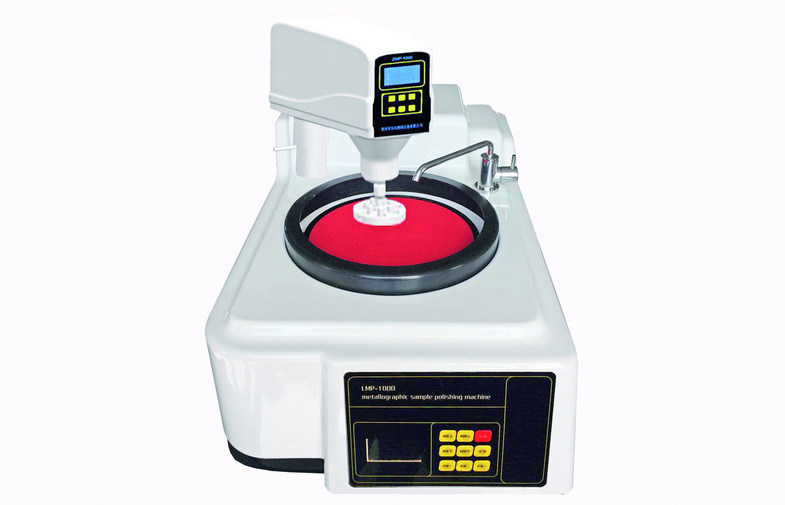

Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm

Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm
Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm

Large Image :  Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE
Model Number: XGrind-317
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Detailed Product Description
Disc Diameter: 250mm Rotate Speed: 50-600rpm
Head Rotate: Speed 0-100rpm Pressure: 32-200N
Sample: Diameter φ30mm Motor: Power 320W
High Light:

metallographic polishing machine

,

grinder polisher machine



Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm



Brief Introduction:

XGrind-317 automatic grinding and polishing machine adopts international advanced manufacturing technology in accordance with international standards.



XGrind-317 has the following features such as stable and reliable performance,easy operation.wide processing range and working process of the automation etc.It is an ideal sample preparation equipment.



Technical Parameters:

Model XGrind-317
Grinding/polishing disc φ250mm
Speed of the grinding/polishing disc 50-600rpm
grinding/polishing head rotation speed 0-100rpm
Loading range 32-200N
Sample preparation time 0-9999S
Sample diameter φ30mm
Input power 320W
Input Voltage AC220V/50HZ/1Ph
Dimension 660mm x380mm x640mm
Net weight 45kg



Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm 0



Surface layers damaged by cutting must be removed by grinding. Mounted specimens are ground with rotating discs of abrasive paper, for example wet silicon carbide paper. The coarseness of the paper is indicated by a number: the number of grains of silicon carbide per square inch. So, for example, 180 grit paper is coarser than 1200 grit.



The grinding procedure involves several stages, using a finer paper (higher number) each time. Each grinding stage removes the scratches from the previous coarser paper.



This can be easily achieved by orienting the specimen perpendicular to the previous scratches. Between each grade the specimen is washed thoroughly with soapy water to prevent contamination from coarser grit present on the specimen surface. Typically, the finest grade of paper used is the 1200, and once the only scratches left on the specimen are from this grade.



The series of photos below shows the progression of the specimen when ground with progressively finer paper.



Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm 1



Polishing discs are covered with soft cloth impregnated with abrasive diamond particles and an oily lubricant or water lubricant.



Particles of two different grades are used: a coarser polish - typically with diamond particles 6 microns in diameter which should remove the scratches produced from the finest grinding stage,



and a finer polish – typically with diamond particles 1 micron in diameter, to produce a smooth surface.



Before using a finer polishing wheel the specimen should be washed thoroughly with warm soapy water followed by alcohol to prevent contamination of the disc. The drying can be made quicker using a hot air drier.



Mechanical polishing will always leave a layer of disturbed material on the surface of the specimen. Electropolishing or chemical polishing can be used to remove this, leaving an undisturbed surface.

Auto Polishing Head Single Disc 250mm Metallographic Grinding Polishing Machine 50-600rpm 2
