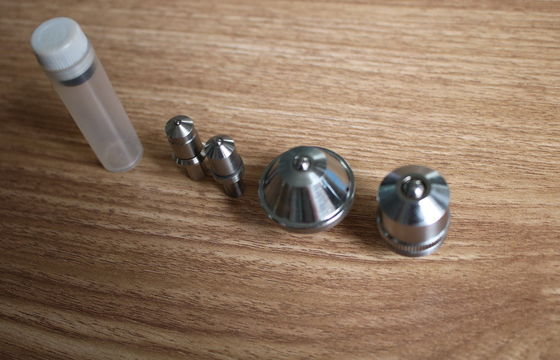

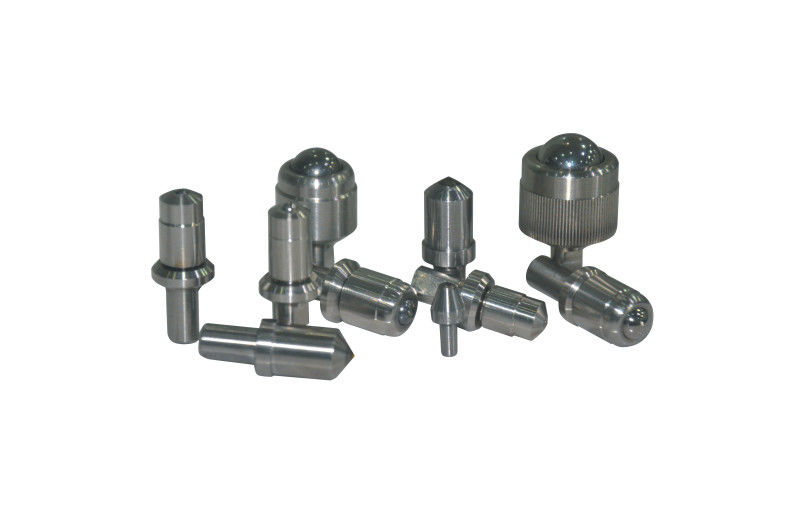

Diamond Penetrator Vickers / Brinell / Rockwell Hardness Indenter For Hardness Tester

Diamond Penetrator Vickers / Brinell / Rockwell Hardness Indenter For Hardness Testing Machine

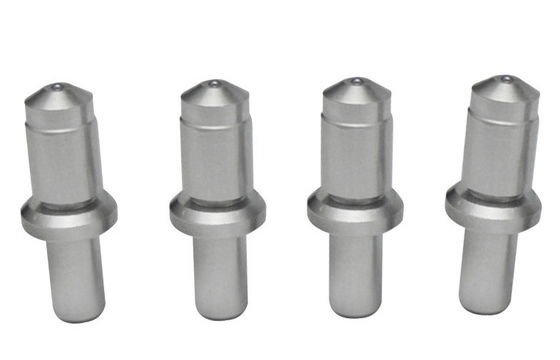

Rockwell diamond indenter / penetrator is used for testing materials such as hardened steels and cemented carbides.

The Rockwell carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.

Brinell indenter is hardened carbide ball indenter with diameters of 10mm, 5mm, 2.5mm and 1mm.

The Vickers hardness with a diamond indenter, in the form of a right pyramid with a square base and an angle of 136 degrees between opposite faces subjected to a load of 1 to 100 kgf.

Knoop indenter is an extended pyramid with the length to width ratio being 7:1 and respective face angles are 172 degrees for the long edge and 130 degrees for the short edge.

iqualitrol diamond hardness indenter makes with quality natural diamond and welding inside the metal substrate, ground into a garden cone geometry have certain technical requirements, then through mechanical processing and become, is a standard Rockwell pressure head. widely used in metrology department standard hardness tester.

Hardness tester of the blocks and to the work of the identification. Because of the hardness tester model, structure, purpose, etc are not identical, so when the choice, and should, depending on the hardness tester of the spindle structure, pay special attention to each model the shape of the head size, in order to supporting the use.
