| Loading Force: | Max 250Kgf For Brinell | Magnification: | 37.5x, 75x |
|---|---|---|---|
| Vertical Space: | Rockwell 160mm | Throat: | 200mm |
| Dwell Time: | 0 - 60 Seconds, Adjustable | Resolution: | 0.1HR |
| High Light: | rockwell hardness test equipment,hardness testing instruments |
||

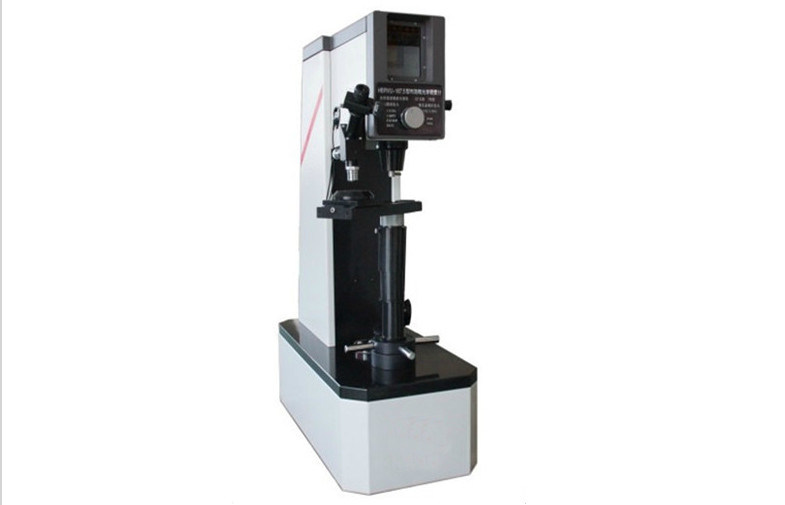

250Kgf Universal Testing Machine For Hardness Test With Scales Rockwell / Brinell / Vickers
Summary:
Brinell Rockwell & Vickers hardness tester is a multi-functional hardness tester with Brinell, Rockwell &Vickers three test modes and 7 level of test forces, which can test several kinds of hardness.
Test force loading, dwell and unloading adopts automatic system, widely application and easy to operate, therefore it is the popular machine for industrial enterprises and scientific research institutes.
Technical Data:
| Model | iUniv-250 |
| Initial Force | 98.07N(10kgf) |
| Rockwell Force | 588N(60kg), 980N(100kg), 1471N(150kg) Permitted Error±1.0% |
| Brinell Force | 306N(31.25kg), 613N(62.5kg), 2452N(250kg) Permitted Error±1.0% |
| Vickers Force | 294N (30kg), 980N(100kg), Permitted Error ±1.0% |
| Standards | GB/T230.2, ISO 6508-2, ASTM E18 |
| Magnification | 37.5x,75x |
| Power Supply | AC220V/50Hz |
| Vertical Space | Rockwell 160mm, Vickers/Brinell 100mm |
| Throat | 200mm |
| Dimension | 660*300*900mm |
| Weight | 130kg |
Application range:
Measuring the Brinell hardness, Vickers hardness and Rockwell hardness for ferrous metal, non-ferrous metal and hard alloy; Wide application in measurement:
a. Brinell hardness of casting, annealed steel, normalized steel, non-ferrous metal and mild alloy
b. Rockwell hardness of quenching, tempering and other thermal-treatment materials
c. Vickers hardness of Nitrided layer, ceramic, sheets, metal foil, electroplated layer and tiny parts.
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
Standard Delivery:
| Description | Qty | Description | Qty |
| Diamond Indenter | 1pc | Vickers Indenter | 1pc |
| φ1.5875mm Ball Indenter | 1pc | φ2.5mm Brinell Indenter | 1pc |
| φ5mm Brinell Indenter | 1pc | Test Anvil | 3pcs |
| Brinell Test Block | 1pc | Rockwell Test Block | 3pcs |
| Vickers Test Block | 1pc | 0 Weights | 1pc |
| Weights | 1 set | Fuse 0.5A(￠5*20) | 2pcs |
| Power Cable | 1pc | Bulb 6V/15F | 2pcs |
| Anti-dust Cover | 1pc | Quality Certificate | 1copy |
| Operation manual | 1copy | Base | 1pc |
| 15x Eyepiece | 1pc | 2.5x Objective | 1pc |
| 5x Objective | 1pc | Slide Table | 1pc |
| Test Anvil | 1pc | “V” Anvil | 1pc |
| Inner Illumination | 1pc | Outer Illumination | 1pc |
| Bulb 6V/5W | 4pcs |
The Rockwell test consists of measuring the additional depth to which a carbide ball or diamond penetrator is forced by a heavy (major) load beyond the depth of a previously applied light (minor) load (SET point).
The minor load is applied first and a SET position is established on the dial gauge or displacement sensor of the Rockwell tester. Then the major load is applied. Without moving the piece being tested, the major load is removed and, with the minor load still applied, the Rockwell hardness number is automatically indicated on the dial gauge or digital display.
The diamond penetrator is used for testing materials such as hardened steels and cemented carbides. The carbide ball penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2 inch diameter, are used when testing materials such as steel-copper alloys, aluminum and plastics to name a few.
Rockwell testing falls into two categories: Regular Rockwell testing (e.g., C and B scales)
and Rockwell superficial testing (e.g., 30 N and 30 T scales).
High Rockwell hardness numbers represent hard materials and low numbers soft materials.
EXPORT STANDARD SEAWORTHY PACKING:
