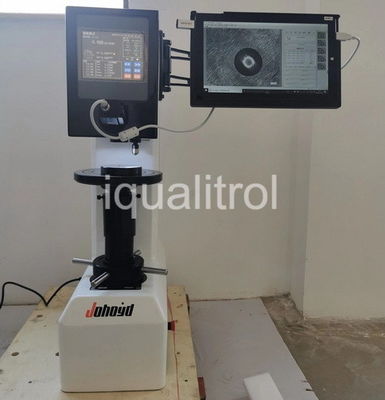

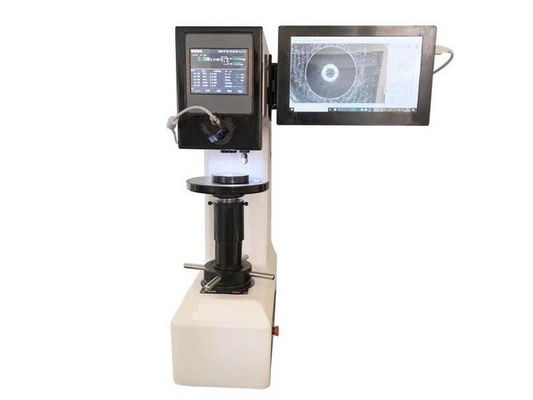

Computerized Built-in Software Closed Loop Sensor 10 Steps Force Brinell Hardness Tester

Large Image : Computerized Built-in Software Closed Loop Sensor 10 Steps Force Brinell Hardness Tester

Product Details:

Brand Name:	iqualitrol
Model Number:	HBE-3000V

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	10 Working Days
Payment Terms:	T/T
Supply Ability:	30 Sets per Month

Contact Now

Detailed Product Description

Vertical Space:	220mm	Resolution:	0.005mm
Range:	Hardness 8~650HBW	Magnification:	20X
Horizontal:	Space 135mm	Hardness:	By Check Brinell Table
Highlight:	Computerized Brinell Hardness Test Equipment , Brinell Hardness Test Equipment 130kg

Computerized Built-in Software Closed Loop Sensor
10 Steps Force Brinell Hardness Testing Machine

Technical Data Download: iqualitrol Brinell Hardness Tester PCHBST-3000Z

Brief Introduction:
iqualitrol HBE-3000V Electronic Cast Iron Brinell Hardness Tester apply closed loop sensor loading, the electronic control system, has 10 steps testing force, it has high precision, high repeatability and stability, simple operation, etc

Technical Specifications:

Model	HBE-3000V
Brinell Scales	HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/1000
Test Force	62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Vertical Space	220mm
Resolution	0.005mm
Dwell Time	0~60s
Hardness Range	8~650HBW
Magnification	20X
Standards	GB/T231.2, JJG150
Horizontal Space	135mm
Hardness Reading	Display on LCD directly
Power Supply	AC220V+5%,50~60Hz
Dimension (mm)	520210745mm
Weight	130kg

Features:
1, High accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the testing.
2, 10 Steps Testing force for wider application;

3, Equips with stepping motor to realize automatic loading, dwell and unloading, with much lower noise during testing;
4, Die casting metal shell, stable structure, able to work under rugged environment;

5, Surface with car baking process, strong resistance of scratches, still brightness after years using;
6, Available to install optional Brinell measuring software, largely improve working efficiency.

Applications:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

Because of the wide test force range the Brinell test can be used on almost any metallic material. The part size is only limited by the testing instrument's capacity.

Strengths:
One scale covers the entire hardness range, although comparable results can only be obtained if the ball size and test force relationship is the same.
A wide range of test forces and b all sizes to suit every application
Nondestructive, sample can normally be reused

Weaknesses:
The main drawback of the Brinell test is the need to optically measure the indentation size. This requires that the test point be finished well enough to make an accurate measurement.
Each measurement takes 30 seconds not counting the sample preparation time.

Standard Delivery:

Microscope	1pc	Indenter 2.5, 5, 10mm	Each 1pc
Test Block	3pcs	Flat and “V” Shape Test Anvil	Each 1pc
Power Cable	1pc	Operation Manual	Each 1copy
Fuse	2pcs	Brinell Table	1copy
