| Memory: | Save 100 Groups Measuring Data | Conversion: | Conform ASTM E140 Hardness Conversion |
|---|---|---|---|
| Display: | 7" LCD Touch Screen | Max Height: | Specimen Height 90mm |
| Magnification: | 100x, 400x | Dwell Time: | 5 - 60 Seconds |
| Highlight: | micro vickers hardness testing machine,automatic microhardness tester |
||

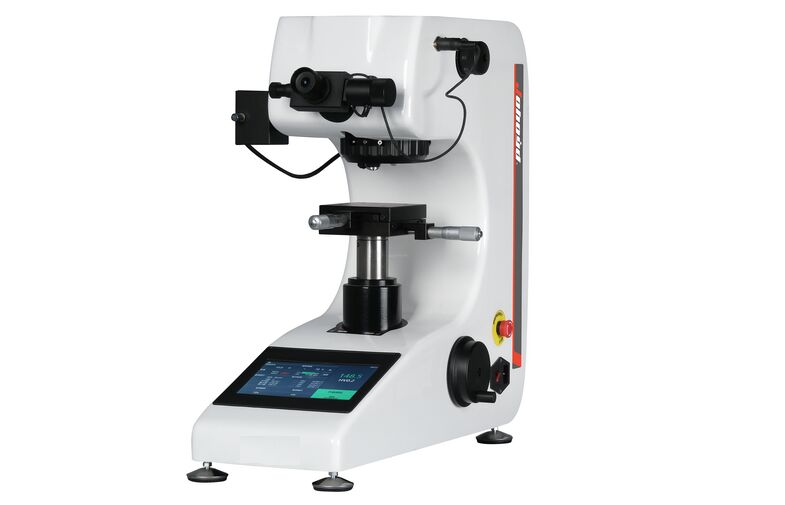

Touch Screen Automatic Turret Digital Micro Vickers Hardness Tester with Built-in Printer
Technical Data Download:
iqualitrol Touch Micro Vickers Hardness Tester HVST-1000Z
Technical Specifications:
| Micro Hardness Scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Display | 7 inch LCD touch screen |
| Test Force (gf) | 10, 25, 50, 100, 200, 300, 500, 1000 |
| Loading control | Automatic (load/dwell/unload) |
| Test force retention time | 5 to 60 seconds |
| Test force selection | External force selection knob, the test force is automatically displayed on the 5.6-inch LCD touch display |
| Objective magnification | 10×, 40× |
| Optical channel |
Dual light channels (eyepieces and CCD camera channels) |
| Optical system | 1.Automatic digital encoder; 2.The total magnification (μm): 100 × (observation), 400 × (measurement); 3.Measuring range (μm): 200; 4.Resolution (μm): 0.01 |
| Hardness measurement range | (5-3000) HV |
| XY test platform | Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
|
Maximum height of specimen |
90mm |
|
Maximum width of specimen (mm) |
120 (distance from the center line of the indenter to the wall) |
| Voltage | AC220V/50HZ/1Ph |
| Weight | 35kg |
| Dimensions | 400*290*480mm |
Standard Delivery:
| 1.Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1) | 2.Test platform, weight, microscope accessory box; |
| 3.Weights x6 | 4.Weight bar x1 |
| 5.Cross table x1 | 6.Sheet clamping table x1 |
| 7.Flat mouth clamping table x1 | 8.Filament holding table x1 |
| 9.Level meter x1 | 10.Screwdriver x2 |
| 11.Horizontal adjustment screws x4 | 12.External power cord x1 |
| 13.10× Digital Micrometer Eyepieces x1 | 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each ) |
| 15.Fuses (1 A) x2 | 16.Product certification x1 |
| 17.Product Instruction Manual x1 | 18.Dust cover x1 |
Note:
1. Optional side-sway lifting system makes the lifting system more stable and accurate.
2. Side-sway lifting system, optional Z-axis jog, improve efficiency.
3. Optional built-in printer, one-click printing of measurement data.
4. Optional computer measurement software, computer operation, improve efficiency, eliminate human error, more accurate accuracy, can produce data reports.
The machine adopts C language programming, high magnification optical measurement system and optical dual-channel structure, photoelectric, optical couples and other new technologies, in addition to the basic Vickers hardness test requirements, the upgraded digital micrometer eyepiece can be directly Read the length of the measurement, so that the measured value can be obtained more quickly and accurately. The upgraded control operating system adopts a 7-inch LCD touch screen, which can provide more measurement data and more comprehensive and precise control.
Main Functions and Features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, the vision is comfortable, and the operation is not easy to fatigue for a long time;
2. 7-inch LCD touch screen can visually display the hardness value, conversion hardness, test method, test force, brightness, load time, number of measurements, statistical data, upper and lower limit measurement range, test time and other test procedures are straightforward;
3. The system comes with a calibration function, you can manually adjust the input error calibration instrument;
4. The brightness of the optical system can be adjusted: 0-100;
5. Can store up to 100 sets of test data, display the last 5 sets of test data in the main interface;
6. The test force unit can be manually selected to convert to each other, the conversion unit is: (Kgf, N)
7. Can be displayed simultaneously: maximum, minimum, average, maximum error, sample difference;
8. The main interface can display 4 conversion scales at the same time, and can be switched: American standard and international standards, a total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;
9. Can set the upper and lower limit measurement range, displayed on the main measurement interface;
10. The measuring scale can be converted into HK Knoop hardness;
11. The operating system can be converted in English;
12. HVST-1000Z model can be realistic: the length of the measurement directly confirms the hardness value;
13. The HVST-1000Z model can be realized: observation-test-measurement position switching is completed by an automatic turret.
14. Cast aluminum shell molding structure stability is not deformed, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;
Application:
1.Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures;
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings;
3. Glass, wafer.
