Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation

Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation

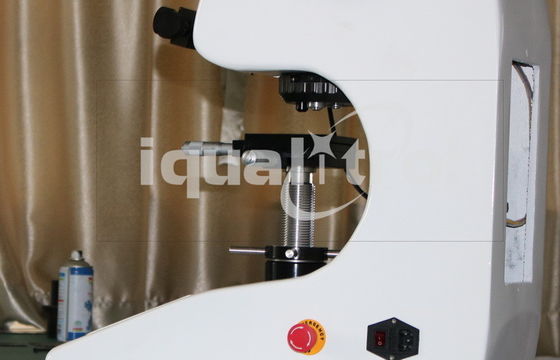

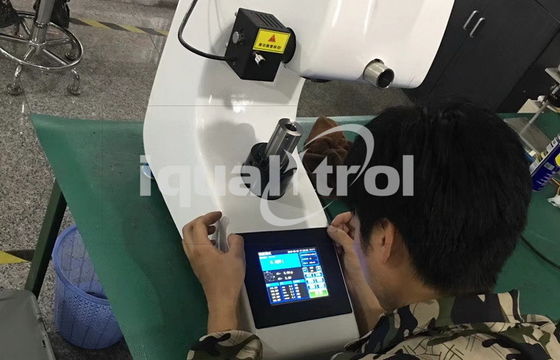

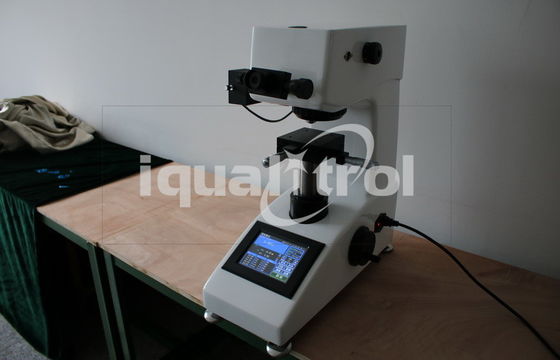

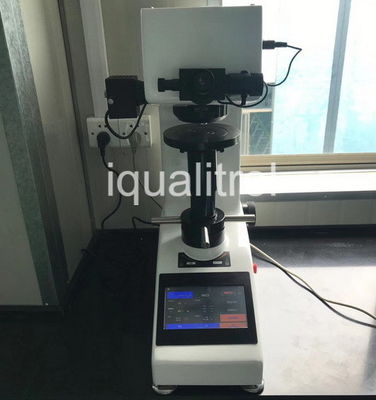

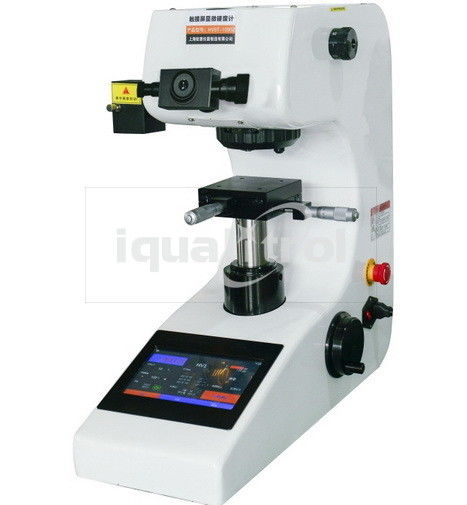

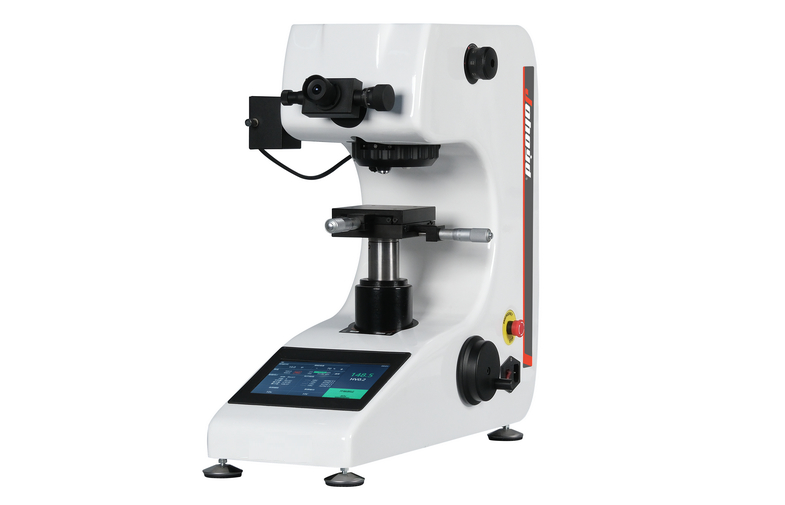

Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation

Large Image :  Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation

Product Details:
Place of Origin: DG/CHINA
Brand Name: iqualitrol
Certification: ASTM E384, CE
Model Number: HVT-1000Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Turret: Automatic Turret Display: 7“ LCD Touch Screen
Eyepiece: Analog 10X Measuring Microscope Conversion: Hardness Conversion ASTM E140
Error: Support Error Compensation Test Mode: Both Vickers And Knoop
High Light:

Touch Screen Microscope Hardness Tester

,

Analog 10X Microscope Hardness Tester



Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation



Technical Data Download: iqualitrol Micro Vickers Hardness Tester HVT-1000Z



Model: HVT-1000Z



This automatic turret micro hardness tester is a new generation of multi-functional touch screen micro hardness tester newly developed by our company. The hardness tester is novel in design, has good reliability, operability and repeatability, and is a test microhardness tester. Ideal product.



The machine adopts C language programming, high magnification optical measurement system and optical dual channel structure, photoelectric, optical couples and other new technologies, in addition to the basic Vickers hardness test requirements, the upgraded control operating system, using 7inch LCD touch screen, can provide more measurement data, control is more comprehensive and accurate.





Main functions and features:

1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, the vision is comfortable, and the operation is not easy to fatigue for a long time;


2. 7inch LCD touch screen can visually display the hardness value, conversion hardness, test method, test force, brightness, load time, number of measurements, statistical data, upper and lower limit measurement range, test time and other test procedures are straightforward;


3. The system comes with a calibration function, you can manually adjust the input error calibration instrument;


4. The brightness of the optical system can be adjusted: 0-100;


5. Can store up to 100 sets of test data, display the last 5 sets of test data in the main interface;


6. The test force unit can be manually selected to convert to each other, the conversion unit is: (Kgf, N)


7. Can be displayed simultaneously: maximum, minimum, average, maximum error, sample difference;


8. The main interface can simultaneously display 5 conversion scales, a total of 18 measurement scale conversion: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;


9. Can set the upper and lower limit measurement range, displayed on the main measurement interface;


10. The measuring scale can be converted into HK Knoop hardness;


11. HVT-1000Z models can be achieved: observation - test - measurement of The position switch by the automatic turret to complete;


12. Cast aluminum shell molding structure is not a stable deformation, pure white car paint high grade, anti-scratch ability, use for many years is still bright as new;


13. Our company has its own R&D, production and processing capabilities. Our machines provide parts replacement and maintenance upgrade services for life.





The main purpose and scope of application:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafer





Technical Parameters:

Parameter Item Specifications
Micro hardness scale HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1
Display 7inch LCD touch screen
Test force (gf) 10,25,50,100,200,300,500,1000
Loading control Automatic (loading/dwell/unloading)
Test force retention time (s) 5 to 60 seconds
Test force selection External force selection knob, the test force is automatically displayed on the 5.6-inch LCD touch display
Objective magnification 10×, 40×
Optical channel Dual light channels (eyepieces and CCD camera channels)
Optical system 1. Automatic digital encoder;
2. The total magnification (μm): 100 × (observation), 400 × (measurement);
3.Measuring range (μm): 200;
4. Resolution (μm): 0.01
Hardness measurement range (5-3000) HV
XY test platform Size (mm): 100×100
Travel range (mm): 25×25
Minimum reading (mm): 0.01
Maximum height of specimen (mm) 90
Maximum width of specimen (mm) 120(distance from the center line of the indenter to the wall)
Voltage AC220V/50HZ
Weight (kg) 35
Dimensions (400*290*480))mm





Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation 0



Standard configuration:

Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1) 2. Test platform, weight, microscope accessory box;
3. Weights x6 4. Weight bar x1
5. Cross table x1 6. Sheet clamping table x1
7. Flat mouth clamping table x1 8. Filament holding table x1
9. Level meter x1 10. Screwdriver x2
11. Horizontal adjustment screws x4 12. External power cord x1
13.10× Digital Micrometer Eyepieces x1 14. Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )
15. Fuses (1 A) x2 16. Product certification x1
17. Product Instruction Manual x1 18. Dust cover x1

Note:

1. The optional side-sway lifting system makes the lifting system more stable and accurate.
2. Side swing lifting system, optional Z-axis jog lifting to improve efficiency.
3. Optional built-in printer, one-click printing of measurement data.
4. Optional computer measurement software, computer operation, improve efficiency, eliminate human error, more accurate accuracy, can produce data reports.



Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation 1


Analog 10X Microscope Touch Screen Micro Vickers Hardness Tester with Error Compensation 2
