Product Details:
Payment & Shipping Terms:
|
| Specimen Size: | 10*10* 55 Mm | Broaching Stroke: | 350mm |
|---|---|---|---|
| Broaching Speed: | 2.5 Mm/min | Dimension: | 350*350*700mm, 80Kg |
| Highlight: | material testing apparatus,material testing equipment,CE Certified Manual Broaching Machine |
||

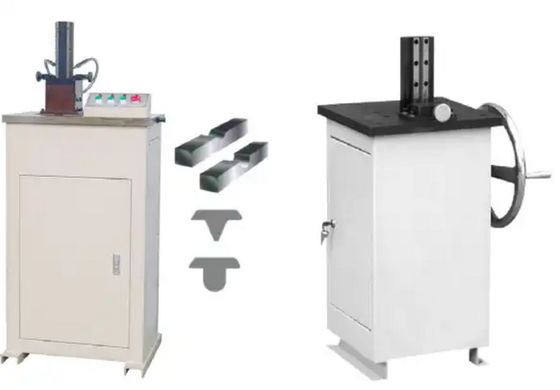

Manual Broaching Machine of Impact Notch GB229-94 Test method
for Charpy Notched Impact
1. Description
The broaching machine is a manual structure, which can be equipped with any kind of the notch broaching tool of V type and the 2mm U type according to the requirements of the users. The specimen notch is processed and molded at a time, the operation is simple and reliable.
The processed V type notch and 2mm U type notch meets the test standards of GB229-94 Standard Test method for Charpy Notched Impact of Metals
It is broached into shape at one time with excellent processing identity to ensure they are 100% qualified.
2. Technical specifications
Processed specimen notch: V shape (In accordance with GB229-94,ISO148)
U shape(2mm,in accordance with GB229-94)
Processed specimen size: 10*10* 55 mm
Broaching stroke: 350 mm
Broaching speed: 2.5 mm/min
Dimension: 350*350*700mm
Weight: 80 Kg
3. Configuration list
Host machine 1 set
Broaching knife 1pc(already in the host machine)
Force turntable 1pc
Manual broaching machine for V-U metal material impacting sample notch is Suitable for 40CR, 45CR, 40N1, 40CRN1, 50CRN1, malleable cast iron, aluminum, babbitt alloy, steel with hardness of 190-240HB, etc. It is a necessary special equipment for physical and chemical laboratories in metallurgy, boiler and pressure vessel, vehicle and ship, engineering machinery manufacturing and scientific research departments.
Product parameters:
| Product name: impact sample notch manual broaching machine | |
| Machining sample notch | V compliance (GB229-2007,ISO148) U (2mm, GB229-2007) |
| Machining sample size | 10*10(7.5 or 5)*55mm |
| Broach stroke | 350mm |
| Broaching speed | 2.5mm/min |
| outline dimension | About 350*350*700mm |
| Net weight | About 80kg |
