Detailed Product Description
Specimen: Max Height 270mm Conversion: Hardness Conversion To Brinell, Vickers
Dwell Time: 3-60S, Adjustable Data Statistics: Auto Calculate Max, Min, Avg, Error, Test Numbers
Printing: Printer, COM Port Throat: 160mm

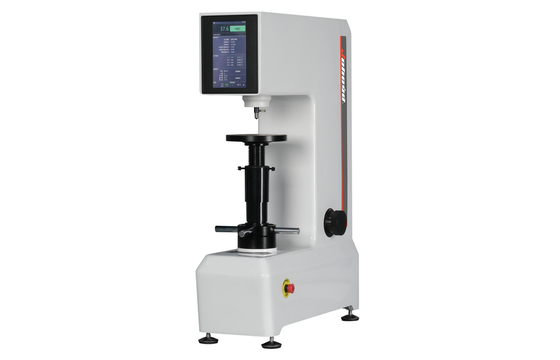

Touch Screen Twin Rockwell Superficial Hardness Tester with Printer COM port Data Compensation



Model: CHRTS-150S



Key Features:

iqualitrol CHRTS-150S twin Rockwell hardness tester equips with touch screen, adopts a closed-loop loading control system with high test force accuracy, good repeatability and stability of indication values.



With automatic loading and unloading test force, it can carry out the hardness test of a full range of Rockwell scales. When testing cylinders, corrections can be added automatically. Built-in printer to read relevant test results. the machine is also equipped with an emergency stop device.



Main Specifications:

Initial Force 3kgf(29.42N)/10kgf(98.07N) Error: ±2.0%
Total Force 15kgf,30kgf,45kgf,60kgf,100kgf,150kgf
Hardness Scales HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HE45Y
Standards GB/T230.1, GB/T230.2, JJG112, GB/T2848, GB/T3773, EN10109, ASTM E18, ISO 6508
Conversion Hardness Conversion to Brinell, Vickers
Display Touch Screen
HR Resolution 0.1
Dwell Time 3-60S, adjustable
Force Switch Auto
Hardness value Correction
Cylinder Compensation
Force Compensation
Range Judgement
Data Statistics Auto Calculate Max, Min, Avg, Error, Test numbers, etc.
Data Process Printer, COM port
Specimen Height 270mm
Throat 160mm
Dimension 560X210X810mm
Power Supply AC220V/50HZ
Weight 100KG
