|Display:||7-inch LCD Touch Screen||Turret:||Manual Turret|
|Eyepiece:||Analogue Micrometer Eyepiece||Objective:||10X, 40X|
|Test Space:||Vertical 90* Throat Depth 120mm||Dwell Time:||5 To 60 Seconds, Adjustable|
Manual Turret Micro Hardness Tester,
Touch Screen Micro Hardness Tester,
10X Micro Vickers Hardness Tester

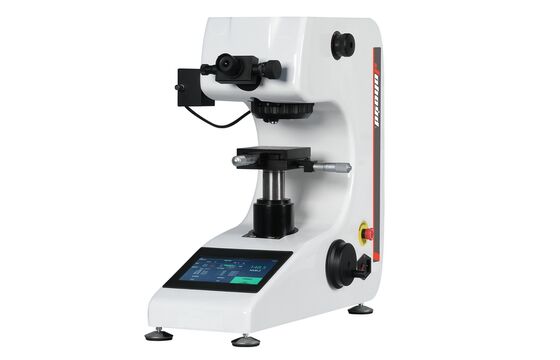

Manual Turret Touch Screen Micro Hardness Tester with Auto Loading Control System
Technical Data Download: iqualitrol Touch Screen Micro Hardness Tester HVT-1000
iqualitrol HVT-1000 manual turret micro hardness tester is a new generation of multi-function touch screen micro hardness tester.
The hardness tester has novel shape, good reliability, operability and repeatability. It equips with high magnification optical measurement system and optical dual-channel structure, and new technologies such as photoelectricity and photocoupler sensing can meet the basic Vickers hardness test requirements, so that the measured values can be more quickly and accurately obtained and upgraded.
The subsequent control operating system uses a 7-inch LCD touch screen to provide more measurement data and more comprehensive and accurate control.
|Micro hardness scale||HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1|
|Display||7-inch LCD touch screen|
|Test force||10, 25, 50, 100, 200, 300, 500, 1000gf|
|Loading control||Automatic (load/hold/uninstall)|
|Dwell time||5 to 60 seconds|
|Test force selection||External force selection knob, the test force is automatically displayed on the 7-inch LCD touch display|
|Objective magnification||10X, 40X|
|Optical channel||Dual light channels (eyepieces and CCD camera channels)|
1. Manual micrometer eyepiece;
2. Total magnification (μm): 100X (observation), 400X (measurement);
3. Measurement range (μm): 200;
4. Resolution (μm): 0.25
|Hardness measurement range||(5-3000) HV|
|XY test platform||Size: 100*100mm
Travel range: 25*25mm
|Maximum height of specimen||90mm|
|Throat depth||120mm (distance from the center line of the indenter to the wall)|
Main functions and features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope. The brightness is adjustable, the vision is comfortable, and it is not easy to fatigue for a long time operation.
2. The 7-inch LCD touch screen can display the hardness value, converted hardness, test method, test force, brightness, holding time, measurement times, statistical data, upper and lower limits measurement range, test time and other test processes intuitively;
3. The system comes with a calibration function, which can manually adjust the input error calibration instrument;
4. Adjustable range of optical system brightness: 0-100;
5, can store up to 100 sets of test data;
6. The unit of test force can be selected and converted manually. The conversion unit is: (Kgf, N);
7, can display simultaneously: maximum, minimum, average, maximum error, sample difference;
8. The main interface can display 4 conversion scales at the same time and can be switched: national standards, American standards and international standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK , HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;
9. The upper and lower limit measurement range can be set and displayed on the main measurement interface;
10. The measuring scale can be converted into HK Knoop hardness;
11. The operating system can be converted between Chinese and English;
12, optional built-in printer, test data can also be exported to U disk via USB for analysis;
13. The one-shot molding structure of the cast aluminum shell is stable and not deformed. The pure white automobile paint has a high grade and strong scratch resistance.
The main purpose and scope of application:
1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures
2. Carburizing, Nitriding and Decarburization Layers, Surface Hardening Layers, Plating, Coatings
3. Glass, wafer.
|1. Main Unit (Micro Vickers indenter x1, 10x objective x1, 40x objective x1)||2. Test platform, weight, microscope accessory box;|
|3. Weights x6||4. Weight bar x1|
|5. Cross table x1||6. Sheet clamping table x1|
|7. Flat mouth clamping table x1||8. Filament holding table x1|
|9. Level meter x1||10. Screwdriver x2|
|11. Horizontal adjustment screws x4||12. External power cord x1|
|13.10× Digital Micrometer Eyepieces x1||14. Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each )|
|15. Fuses (1 A) x2||16. Product certification x1|
|17. Product Instruction Manual x1||18. Dust cover x1|
1. The optional side-sway lifting system makes the lifting system more stable and accurate.
2. Side swing lifting system, optional Z-axis jog lifting to improve efficiency.
3. Optional built-in printer, one-click printing of measurement data.
4. Optional computer measurement software, computer operation, improve efficiency, eliminate human error, more accurate accuracy, can produce data reports.
