| Model: | ZXQ-6, One Mould Station | ZXQ-6S: | Double Mould Station |
|---|---|---|---|
| Mounting Time: | Innovative Built-in Heating And Cooling Structure Shortens The Sample Mounting Time To 6 Minutes | Pressure Maintaining Circuit Device: | Effectively Squeeze Out The Air Remaining In The Material |
| Fixing Device: | Effectively Prevents The Risk Of Personal Injury Caused By The Upper Cover Popping Up When Taking Out The Sample | Program-controlled System: | Reserves 9 Customer-customizable Preparation Plans To Meet The Different Inlay Needs Of Customers |
| Brand-new ABS Material Shell: | Novel And Exquisite Color Matching And Appearance Design, Giving Users A Comfortable Feeling | Display: | Large-size Touch Capacitive Screen Has Excellent Display Effect |
| Highlight: | Automatic Hot Mounting Press,Program Controlled Hot Mounting Press,Metallographic Mounting Press With Touch Screen |
||

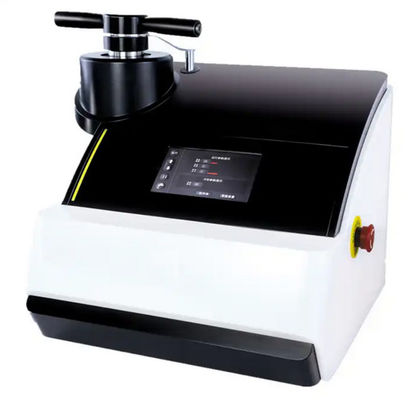

Program Controlled Pneumatic Automatic Hot Mounting
Press with Touch Screen
Overview:
Mounting of metallographic and petrographic samples that are for small and difficult to hold or irregular, facilitates the grinding and polishing operations of the samples after mounting, and is also conducive to the correct observation of the ideal material structure under a metallographic microscope and the hardness tester Test the hardness of the material.
Equipment Features:
1. The innovative built-in heating and cooling structure shortens the sample mounting time to 6 minutes, greatly improving work efficiency.
2. It also innovatively applies a pressure maintaining circuit device to effectively squeeze out the air remaining in the material to make the texture of the inlaid sample uniform, prevent bubbles caused by residual air, and make the surface of the sample smooth.
3. iqualitrol also conducted in-depth research on the safety of the equipment and developed a fixing device for the inlay machine, which effectively prevents the risk of personal injury caused by the upper cover popping up when taking out the sample.
4. The program-controlled system of this inlay machine reserves 9 customer-customizable preparation plans to meet the different inlay needs of customers.
5. ZXQ-6 abandons the silly and bulky image of traditional inlay machines. It adopts a brand-new ABS material shell, novel and exquisite color matching and appearance design, giving users a comfortable feeling.
6. It truly realizes the function of mounting two specimens at one station at the same time, and the mounting results are equally excellent.
7. The large-size touch capacitive screen has excellent display effect.
Technical Specifications:
| Model | ZXQ-6 | ZXQ-6S |

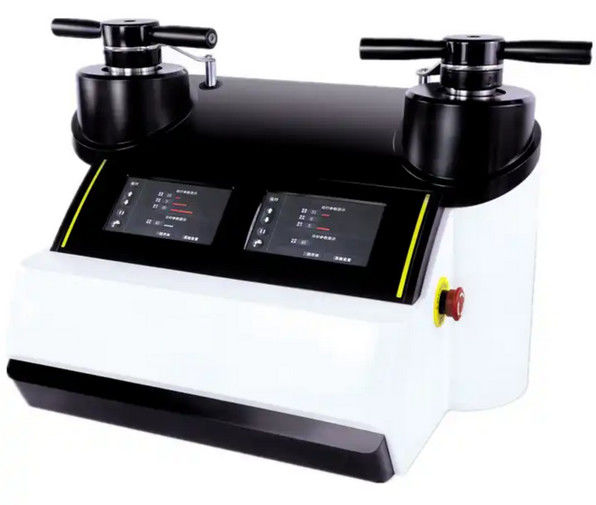

| Mould | One Mould Station | Double Mould Station |
| Pressure | pneumatic | |
| Diameters | British system: 1”, 1.25”, 1.5”, 2” | |
| metric system: 25mm, 30mm, 40mm, 50mm | ||
| Air Pressure | 0.6MPa (500kgf) | |
| Max Pressure | 500 kgs | |
| Heating Temperature | 90℃-200℃ (adjustable) | |
| Heating Power | 2000w British system: 1”, 1.25” metric system: 25mm, 30mm |
3800w British system: 1”, 1.25” metric system: 25mm, 30mm |
| 2600w British system: 1.5”, 2” metric system: 40mm, 50mm |
5000w British system: 1.5”, 2” metric system: 40mm, 50mm |
|
| Cooling | Water Cooling | |
| Cooling Adjust | Cooling Temperature: 40℃-90℃ (adjustable), increase or decrease by 1℃ |
|
| Cooling ime: 0-10min (adjustable), increase or decrease by 1min |
||
| Working Environment |
Temperature 5℃ to 40℃,Humidity 30-90%RH | |
| Power Supply | AC220V,50HZ,1Ph (optional AC110V) | |
| Water inlet | 3/4 Standard water inlet | |
| Water outlet | Φ10 rubber tube | |
| Net Weight | 34 KG | 54 KG |
| Dimension | 530×485×463mm(W×D×H) | 671×485×463mm(W×D×H) |
