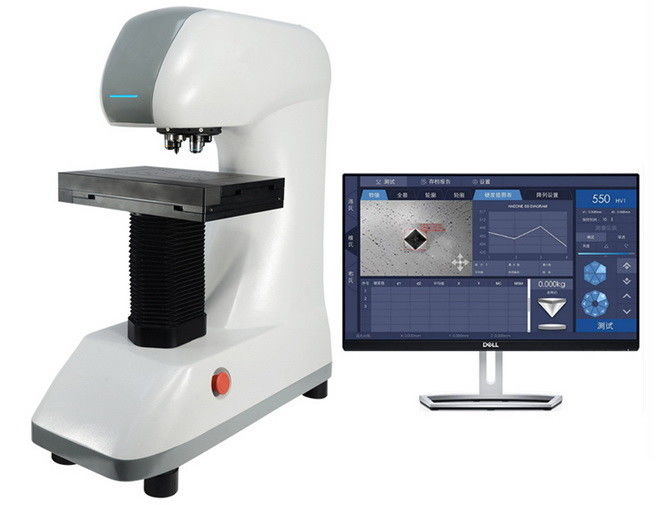

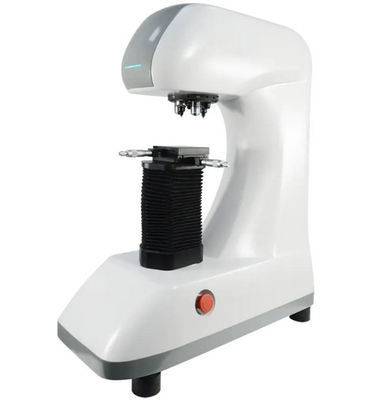

Automatic Micro Vickers Hardness Tester with Motorized Table Auto Focus System

Automatic Micro Vickers Hardness Tester with Motorized Table Auto Focus System
Automatic Micro Vickers Hardness Tester with Motorized Table Auto Focus System Automatic Micro Vickers Hardness Tester with Motorized Table Auto Focus System

Large Image :  Automatic Micro Vickers Hardness Tester with Motorized Table Auto Focus System

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: iQM2000-CA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 20 working days
Payment Terms: T/T, Western Union
Supply Ability: 5 Sets per Month
Detailed Product Description
Lifting Structure: Linear Displacement Lifting Structure For The Weight Loading System Test Force Range: Precise Load Cell System From 5gf To 2000gf, And Automatic Loading, Dwelling, And Unloading
Automatic Turret: Stable Automatic Turret With 6-working-position, MicroVickers Diamond Indenter Optical Path: High-definition Optical Path With 8MPixel Camera Makes The Hardness Indention Sharply
Motorized X-Y Platform: X-Y Platform With Metal Size 260x250mm And Measuring Travel Is 120x120mm Software Advantages: Support 17 Ways Of Path Planning, Set Any Number, Such As 30-point Coordinates, Click Start, And The Machine Will Automatically Complete 30 Point Measurement


Automatic Micro Vickers Hardness Tester with Motorized Table Auto Focus System


Model: iQM2000-CA


Brief Introduction:

iqualitrol iQM2000-CA is an automatic micro-Vickers hardness testing system with machine vision, motorized X-Y platform, optional auto-focus system and computer software system ATS-300, it has auto-measurement about the indentation of Vickers, eliminates human operation error, largely improves working efficiency, makes hardness testing measurement more accurate and uncomplicated.


Technical Specifications:

Commodity Automatic MicroVickers Hardness Tester
Model iQM2000-CA
Loading Force N 0.098~19.60
gf 5~2000
Loading System Automatic
Motorized X-Y Stage Mini-Step-Motor with Size L:180*W:140mm
X-Y Stage Stroke 120x120mm
Minimum Step 0.625um
Language English
Loading Time 1~60s adjustable
Turret Automatic-turret
Objective 10×, 50×
Z-axis Focusing System Manual-Focus by Worm Gear System
Minimum Measurement Unit 0.025 μm
Max. Height of Specimen 200mm
Instrument Throat 170mm
Executive Standard GB/T 4340.2; ISO 6507; ASTM E92; JIS Z2244
Power Supply AC220V/50; 110V/60 Hz
Dimension (L×W×H) 525mm x 323mm x 773mm
Automatic Testing Software ATS-300 Image Analysis and Measurement Software (Dongle and CD)
Camera Type 8 Megapixel HD Camera
Motion Controller X-Y Automatic Platform Control System
Computer System Dell 3000MT
Monitor 21.5” HDMI Monitor
Net Weight 75Kg
Gross Weight 120Kg



Vickers method is based on an optical measurement system, it specifies a range of light loads using a diamond indenter to make an indentation which is measured and converted to a hardness value. It is very useful for testing on a wide type of materials, but test samples must be polished to enable measuring the size of the impressions. A square base pyramid shaped diamond is used for testing in the Vickers scale. Typically loads are very light, ranging from 5gf to 2Kgf, although "Macro" Vickers loads can range up to 50 Kg or more.


Micro Vickers hardness methods are used to test on metals, ceramics, and composites - almost any type of material. Since the test indentation is very small in a Vickers test, it is useful for a variety of applications: testing very thin materials like foils or measuring the surface of a part, small parts or small areas, measuring individual microstructures, or measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.


Product Feature:

1, Excellent Boldy of iQM2000-CA Micro Vickers Hardness Testers with linear displacement lifting structure for the weight loading system.

2, Precise load cell system from 5gf to 2000gf, and Automatic loading, dwelling, and unloading during the testing process

3, Stable automatic turret with 6-working-position, MicroVickers diamond indenter, 10x and 50x objective are installing on one focal plane.

4, High-definition optical path with 8MPixel Camera makes the hardness indention sharply, the video magnification is over than 2000x, it makes the measurement of small indention easily.

5, Motorized X-Y platform with metal size 260x250mm and measuring travel is 120x120mm, it can be programmed to test the Vickers hardness of specimen automatically.

6, Z-axis Autofocus Focus System as standard delivery

7, Powerful automatic Vickers testing software ATS-300 with smart testing functions

8, Windows operating system, Word, Excel, PDF and other Customized output reports are available.


Software Advantages:

1. It can realize panoramic scanning, scan the overall graphics of the product to the computer, select any position, and the product will automatically move to the required position;


2. It can support 17 Ways of path planning, set any number, such as 30-point coordinates, click start, and the machine will automatically complete 30 point measurement without manual operation, automatic loading, automatic focusing and automatic measurement;


3. Equipped with optional Z-axis motor and auto-focus system, there is no need to manually find the focal length, and the machine automatically focuses. All the steps are completed by software to avoid manual measurement errors.


Basic Function:

The automatic recognition ability of indentation image is leading, and the detection efficiency, stability and accuracy of detection results are high.


Two kinds of calibration: optical calibration, (manual / automatic) hardness block calibration. The hardness block supports multiple averaging, arbitrary multiple standard blocks and segmented calibration and preferred measurement.


In addition to automatic measurement, there are three manual measurement options: four side measurement, diagonal measurement and four-point measurement (the order of four vertex selection can be arbitrary).


Three types of indentation marks are supported: "Rectangle", "Red Cross" and "Circular".


During manual measurement, it has the function of magnifying glass, which is convenient to find the indentation vertex position;

The unique keyboard shortcut function can quickly move the selected vertex to make the measurement operation more efficient.

Provide pixel distance and physical distance of indentation diagonal, and calculate HV / HK value under current load in real time.

Automatic switching of turret (switching of objective lens and indenter).


5MP digital cameras to display indentation video on the computer. It can capture and store images.

Real time display and update the status of current hardness tester: current indenter / objective lens, load holding time, loading force, etc.

The distance between two points can be measured manually; Multiple groups of distances can also be displayed on the video or image at the same time.


In case of different resolutions, different objective lenses and different loads, the software will automatically select the best calibration coefficient.

All test point information can be identified and marked separately or according to customer requirements. The test point identification information will be displayed in the test value sequence table and indentation diagram for easy query. This function is very important for subsequent analysis and processing.


Refer to GB, DIN, ISO, ASTM and other Hardness Conversion standards to realize: Vickers HV, Knoop HK; Rockwell: HRC, HRA, HRB, HRD, HRE, HRF, HRG, HRK; Surface Rockwell: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T; realize mutual conversion between hardness values such as Brinell HBS and Brinell HBW.


When measuring the hardened layer path sequence, there are multiple flexible initializations setting modes, which automatically save and import the previous path sequence; The measurement path can also be saved as desired for reloading.


The path sequence measurement results automatically generate the corresponding hardened layer depth value and hardness change curve.

Multiple analysis modes can be selected for measurement data; All results can be set into graphic report.


Report content and format can be flexibly set, and WORD and EXCEL documents can be automatically generated.

Password and management authority can be set: ordinary operators can only measure hardness according to the set settings.


The built-in standard hardness value conversion tool can automatically convert the measured hardness value according to the table and list it in the result table.
