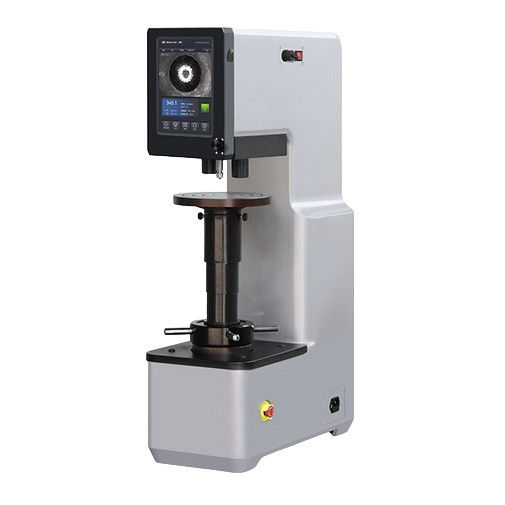

Touch Controller Vision Brinell Hardness Tester VHB-3000 with Auto Measurement Software

Touch Controller Vision Brinell Hardness Tester VHB-3000 with Auto Measurement Software
Touch Controller Vision Brinell Hardness Tester VHB-3000 with Auto Measurement Software

Large Image :  Touch Controller Vision Brinell Hardness Tester VHB-3000 with Auto Measurement Software

Product Details:
Place of Origin: Dongguan/China
Brand Name: iqualitrol
Certification: CE, ISO
Model Number: VHB-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiate in details
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: VHB-3000 Measurement: One-click Test, Automatic Measurement
Limit Set: Set The Upper And Lower Limits Of The Hardness Test Data Analysis: Number Of Tests, The Highest And Lowest Values Of This Group Of Tests, The Average Value And The Standard Deviation
Curve Trend Chart: Statistically Analyze The Collected Hardness Values At Each Point And Automatically Generate A Curve Trend Chart Brinell Software: Equivalent To A Digital Brinell Hardness Tester + A Set Of Brinell Measurement Software



Touch Controller Vision Brinell Hardness Tester VHB-3000 with Auto Measurement Software



Technical Data Download: iqualitrol Brinell Tester VHB-3000



Technical Specifications:

Model VHB-3000
Test force 612.9,980.7,1226,1839,2452,4903,7355,9807,14710,29420(N)
62.5,100,125,187.5,250,500,750,1000,1500,3000(kgf)
Brinell Scales HBW10/3000, HBW10/1500, HBW10/1000, HBW10/500, HBW10/250, HBW10/125, HBW10/100, HBW5/750, HBW5/250, HBW5/125, HBW5/62.5, HBW2.5/187.5, HBW2.5/62.5
Hardness Range 8~650HBW
Loading Control Automatic (Lading, dwell, unloading)
Indenter φ10mm, φ5mm, φ2.5mm
Hardness Reading 10” touch screen controller
Camera 3MP
Loading method Motor Loading
Magnification 20X, 40X
Hardness Resolution 0.1HBW
Turret Auto Turret
Dwell Time 0~60s
Max Height Specimen 280mm
Depth Throat 175mm
Power supply AC220V/50Hz
Test Standard IS0 6506, ASTM E10, JIS Z2243, GB/T 231.2
Dimension & weight 560×270×960mm, 165Kg



Product advantages:

1. One-click test, automatic measurement: After finding a clear surface of the object to be measured, press start and the whole process will be automatically tested. After the test is completed, the system will automatically measure the indentation diameter and obtain the hardness value and hardness conversion value.



2. Three hardness conversion standards: There are three built-in hardness conversion standards, namely: national standard, European standard, and American standard. Select the conversion standard and scale, and the hardness conversion results and test results will be displayed at the same time.



3. Set the upper and lower limits of the hardness test: Set the upper and lower limits of the hardness test according to the workpiece hardness compliance requirements, which can more directly detect whether the test hardness of the workpiece is within the standard hardness range, and more conveniently determine whether the workpiece is qualified.



4. Multi-point test data analysis: The iqualitrol system has built-in multi-point test analysis results, such as the number of tests, the highest and lowest values of this group of tests, the average value and the standard deviation, which can make the hardness test more accurate and test more efficient.



5. Multi-point test curve trend chart: When conducting multi-point hardness tests on materials, the system will statistically analyze the collected hardness values at each point and automatically generate a curve trend chart, which can more intuitively understand whether the hardness of the workpiece is qualified.



6. Three measurement methods: a. One-click test automatically produces results b. One-click measurement: re-measure or measure other indentations, you can click one-button measurement (test parameters must be consistent) c. Manual measurement: measure the indentation through the knob diameter to get the hardness value (the test parameters need to be consistent)



7. Multiple information in the test report header: When exporting the test data table, you can customize the table header information. A total of 19 items of information are optional, which can record the ins and outs of the sample test in detail.



8. Export data with indentation pictures attached: When exporting test data, you can choose to attach indentation pictures corresponding to each data. On the one hand, the accuracy of the measurements can be traced, and on the other hand, the exported data can be prevented from being tampered with. (Indentation pictures with measurement data)



9. Test data is generated in PDF format: PDF has strong cross-system stability, can ensure file integrity, occupies relatively small memory, has good typesetting effect, is suitable for printing, publishing and sending, and is not easy to edit and tamper with.



10. Test data export method: a. By inserting a U disk, import the data in the hardness tester into the U disk, and then copy it to the computer through the U disk. b. Connect the computer and the hardness tester through a network cable to import the data into the computer (data Can be encrypted, enter password before exporting).



11.3~8 seconds high-speed loading: During testing, any scale and any test force can achieve 3~8 seconds high-speed loading, and can avoid overshoot and instability during high-speed loading, making the testing phase more efficient and accurate.



12. Built-in visual Brinell software: This visual Brinell hardness tester comes with IQUALITROL Brinell measurement software, which is equivalent to a digital Brinell hardness tester + a set of Brinell measurement software. However, in terms of testing efficiency and price, the visual Brinell hardness tester has its own Brinell measurement software. Hardness tester is more cost-effective



13. Integrated computer on the hardness tester: The hardness tester is integrated with the computer and can be turned on with one click, avoiding the cumbersome startup process and no dongle is required. By using a dedicated computer, subsequent software upgrades will not prevent you from being unable to run new software due to the low configuration of ordinary computers.
