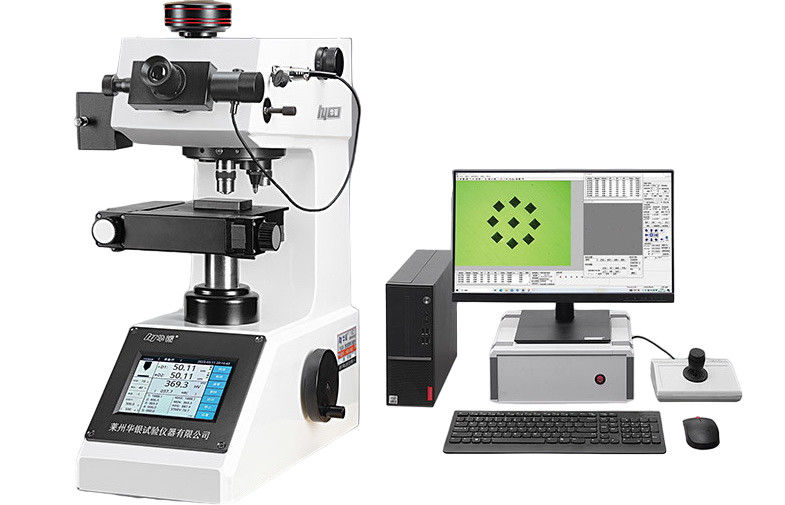

Fully Automatic Micro Vickers Hardness Tester IQUALITROL HYHVS-1000Z

Fully Automatic Micro Vickers Hardness Tester
IQUALITROL HYHVS-1000Z

Product Overview:

IQUALITROL HYHVS-1000Z T2.1 automatic/T3.1 fully automatic microhardness tester, the main unit has LCD touch screen, automatic turret, equips with micro/Vickers hardness automatic measurement system,

through the computer to achieve the control of hardness tester and automatic stage and lifting screw (T3.1), and the hardness indentation image displays on computer screen, integrating electrical control, optical imaging, mechanical displacement, image analysis, computer processing and other professional technologies of hardness testing instruments.

IQUALITROL HYHVS-1000Z adopts precise design, electrically, the test process is controlled by ARM high-speed processor, optically, it adopts high-definition optical measurement system, photoelectric sensor and other new technologies, integrating mechanical and photoelectric, and improving the measurement accuracy of micro-Vickers or Knoop hardness.

IQUALITROL HYHVS-1000Z is suitable for measuring thin test pieces, parts after surface penetration and plating, and for the determination of brittle materials such as agate, glass, ceramics, etc. It is an ideal hardness testing instrument for research and testing in colleges and universities, scientific research institutions, factories and quality inspection departments.

Technical Specifications:

Functional Features:

The HYHV300 T2.1/T3.1 micro-Vickers hardness image automatic measurement system can directly control the hardness tester host, automatic coordinate test table and lifting screw (T3.1), can observe images and measure hardness values in real time, can measure manually and automatically, the measurement process is fast and accurate, can automatically displace and read the sample according to the set trajectory, and realize automatic turret, automatic focusing (T3.1), automatic loading, automatic displacement, automatic reading and other intelligent functions to meet the needs of high-end users.

● The system uses a 3-megapixel digital camera to capture images, effectively improving measurement accuracy;

● The automatic coordinate test table has multiple control methods, which can be computer-controlled, manually operated, or operated by a joystick;

● The system has the function of measuring the effective hardened layer depth with one key, and the computer controls the automatic hardness test, automatically generates a hardness curve, automatically calculates the effective hardened layer depth, and can print out the effective hardened layer depth curve and report;

● The system has error correction and calibration functions, which can correct the system error of the hardness tester;

● The position of the hardness indentation can be marked in real time, which is convenient for selecting the Vickers hardness measurement of different metallographic structures;

● The system ruler can be superimposed on the indentation image;

● The system has database query and management functions.

Application Range:

● Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals;

● Glass, ceramics, agate, gemstones, etc.;

● Depth and gradient measurement of carburized layer, nitrided layer, etc. and quenched hardened layer;

● Microscopic Vickers hardness measurement of small parts such as thin plates and thin sheets.

Main Features of Hardness Tester:

● Automatic turret; frictionless spindle, high test force accuracy;

● High-precision optical measurement system, precision coordinate test bench;

● Adopt IQUALITROL high-speed processor, LCD touch screen;

● Dynamic display of the indenter during loading and unloading, real-time observation of the test status;

● The screen can display the test force, indentation length, dwell time, number of measurements, etc.;

● The test process is automated, the operation is simple, and there is no human error;

● Automatic correction of the hardness value of the concave and convex surface;

● With database storage data function, test data is stored synchronously and can be exported;

● Equipped with USB and RS232 interfaces, it is convenient for users to process data;

● Equipped with a micro printer, the test results can be printed directly;

● Optional Knoop indenter for Knoop hardness test;

● Accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E384.
