| Model: | 400HBS-3000A | Brinell Software: | Test Report Can Be Output And Printed In Word Or Excel Format |
|---|---|---|---|
| Turret Type: | Automatic Turret; Fully Automatic Conversion Of Optical Lens And Indenter | Test Process: | Test Process Is Automated, Simple To Operate, And There Is No Human Error |

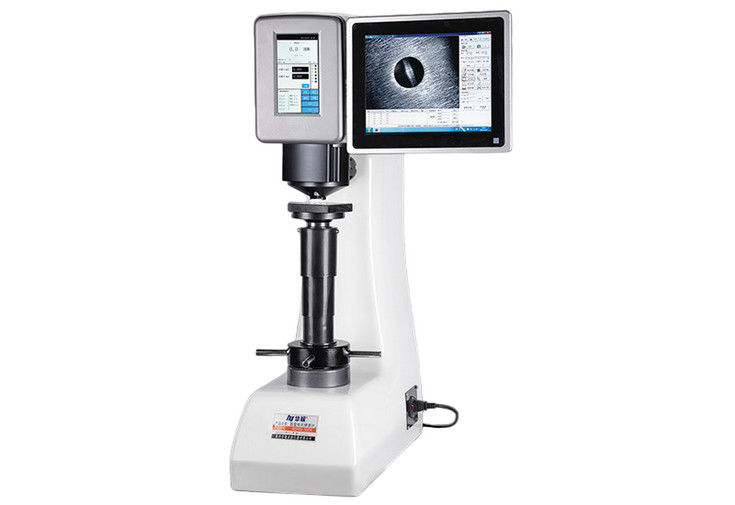

IQUALITROL Digital Brinell Hardness Tester 400HBS-3000A with Built-in Brinell Software
Main features:
● The test force application mechanism designed by applying Pascal's law is stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;
● The test force application mechanism, pressure sensor and Brinell spindle indenter are directly connected to form the Brinell hardness test head technology - bistable direct-drive hardness tester loading unit, which has obtained a national invention patent and two utility model patents;
● Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of test force loading and unloading, high force value accuracy;
● Automatic turret; fully automatic conversion of optical lens and indenter;
● Cast iron casing, solid structure, good rigidity, reliable, durable, high test efficiency;
● 7-inch LCD touch screen; test force application-holding-removal is fully automatic;
● The indentation image, test force, indentation length, dwell time, number of measurements, hardness value, etc. are displayed on the computer, which is easy to operate;
● The test process is automated, simple to operate, and there is no human error;
● 13 test scales; 11 test force levels, force range: 31.25kgf-3000kgf;
● With database storage data function, test data is stored synchronously and can be exported;
● Equipped with USB and RS232 interfaces, it is convenient for users to process data;
● Adopt CCD image measurement technology, automatically capture indentation, automatically measure indentation diameter, automatically display hardness value and can voice report;
● Through RS232 interface and data cable, it is connected to the integrated touch screen industrial computer to control various actions of the hardness tester on the computer, including: selection and application of test force, switching of indenter and objective lens, setting of dwell time, etc.; test report can be output and printed in Word or Excel format;
● Accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.
Scope of application:
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;
● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
Technical Specifications:
| Measuring range: | 8-650HBW |
| Test force |
306.5, 612.9, 980.7, 1225.9, 1838.8, 2451.8, 4903.5, 7355.3, 9807, 14710.5, 29421(N) 31.25, 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000(kgf) |
| Brinell Scales | HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Max. height of test piece | 260mm |
| Depth of Throat | 150mm |
| Dimensions: | 570*270*930mm |
| Voltage | AC220V/50HZ |
| Weight | 135kg |
