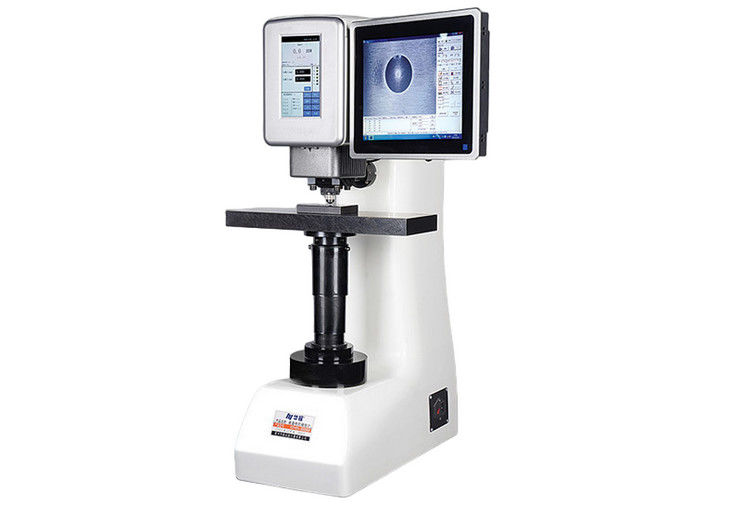

Automatic Lifting Structure 400HBS-3000AZ Brinell Hardness Tester with Automated Test Process

Automatic Lifting Structure 400HBS-3000AZ Brinell Hardness Tester with Automated Test Process

Technical Specification:

Main features:

● The test force application mechanism designed by applying Pascal's law is stable and impact-free, effectively meeting the requirements of the Brinell hardness test method;

● The test force application mechanism, pressure sensor and Brinell spindle indenter are directly connected to form the Brinell hardness test head technology-bistable direct-drive hardness tester loading unit, which has obtained a national invention patent and two utility model patents;

● Adopting ARM high-speed processor, fully automatic closed-loop pressure sensor control system, electronic control of loading and unloading test force, high force value accuracy;

● Automatic turret; fully automatic conversion of optical lens and indenter;

● One-button start, automatic lifting and lowering of Z axis, automatic completion of loading-holding-unloading, automatic indentation measurement and hardness value display;

● Cast iron casing, solid structure, good rigidity, reliable, durable, high test efficiency;

● 7-inch LCD touch screen; the indentation image, test force, indentation length, holding time, number of measurements, hardness value, etc. are displayed on the computer, which is easy to operate;

● The test process is automated, the operation is simple, and there is no human error;

● 13 test scales; 11 test forces, force range: 31.25kgf-3000kgf;

● With database storage data function, test data is stored synchronously and can be exported;

● Equipped with USB and RS232 interfaces, it is convenient for users to process data;

● Adopt CCD image measurement technology, automatically capture indentation, automatically measure indentation diameter, automatically display hardness value and can generate report;

● Through RS232 interface and data cable, it is connected with integrated touch screen industrial computer to control various actions of hardness tester on computer, including: lifting and lowering of screw rod, selection and application of test force, switching of indenter and objective lens, setting of holding time, etc.; test report can be output and printed in Word or Excel format;

● Accuracy meets GB/T231.2, ISO6506-2 and American ASTM E10.

Scope of application:

● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;

● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys;

● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;

● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
