| Model: | 200HBVS-30; Manual Turret; Weights Loading | Test Scales: | Brinell And Vickers Hardness Testing |
|---|---|---|---|
| Display: | 5.6-inch LCD Touch Screen, Support Conversion Of Various Hardness Scales | Value Correction: | Automatic Correction Of Hardness Value For Concave And Convex Surface |
| Test Process: | Automated, The Operation Is Simple, No Human Error | Data Process: | USB And RS232 Interfaces, Built-in Printer |

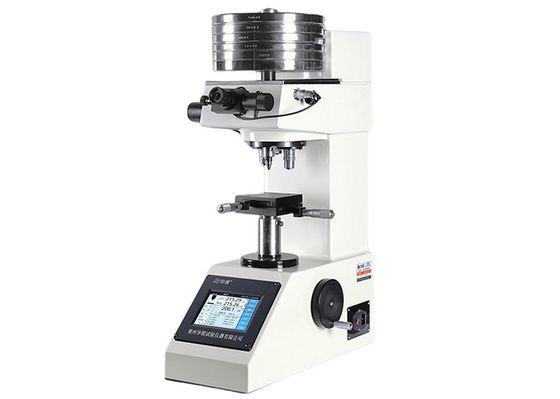

Manual Turret Digital Hardness Tester 200HBVS-30 with Brinell Vickers Test Modes Touch Screen
Main Features:
● iqualitrol 200HBVS-30 has both Brinell and Vickers hardness testing functions;
● Manual turret; weights loading, high test force accuracy;
● High-precision optical measurement system, precision coordinate test bench;
● Adopt ARM high-speed processor, 5.6-inch LCD touch screen;
● Support conversion of various hardness scales;
● Dynamic display of the indenter during loading and unloading, real-time observation of the test status;
● The screen can display the test force, indentation length, dwell time, number of measurements, etc.;
● The test process is automated, the operation is simple, and there is no human error;
● Automatic correction of hardness value for concave and convex surface;
● With database storage data function, test data is stored synchronously and can be exported;
● Equipped with USB and RS232 interfaces, it is convenient for users to process data;
● Equipped with a micro printer, which can directly print the test results;
● Optional CCD image measurement system;
● The accuracy complies with GB/T231.2, GB/T4340.2, ISO6506-2, ISO6507-2 and American ASTM E10, ASTM E92.
Technical Parameters:
| Model | 200HBVS-30 |
| Test force |
9.8,19.6,24.5,29.4,49,98.1,196.1,294.2(N) 1,2,2.5,3,5,10,20,30(kgf) |
| Display | 5-digit hardness value, 4-digit diagonal length (D1, D2), Hold time, number of tests, average, standard deviation, return |
| Test force retention time(s) | 1~99 |
| Loading control | Automatic (load/dwell/unload) |
| Conversion | Rockwell, Superficial Rockwell, Vickers |
| Minimum measurement unit | 0.0625μm(Subject to the choice of objective lens) |
| Total magnification | Total magnification: 400X, 100X |
| Data output | Built-in printer |
| Vertical Space | Maximum height 130mm |
| Indenter center to inner wall | 110mm |
| Power supply | AC220V±5%, 50~60Hz |
| Instrument weight | About 90kg |
| Optional accessories | XY table, CCD measurement system |
Application range:
Brinell Hardness Test
● Determine the Brinell hardness of ferrous metals, non-ferrous metals and other materials;
● Determine the Brinell hardness of bearing alloy materials such as lead-based alloys, babbitt alloys, tin-bismuth alloys, etc.;
● Determine the Brinell hardness of certain non-metallic materials such as hard plastics and bakelite;
● Determine the Brinell hardness of parts produced by casting, forging, rolling and other processes.
Vickers Hardness Test
● Measure the Vickers hardness of ferrous metals, non-ferrous metals, surface coatings, laminated metals, etc.;
● Measure the Vickers hardness of cemented carbide, glass, ceramics, agate, gemstones, etc.;
● Measure the depth and gradient of the carburized layer, nitrided layer, etc. and the quenching hardened layer;
● Measure the Vickers hardness of small parts such as thin plates and sheets.
